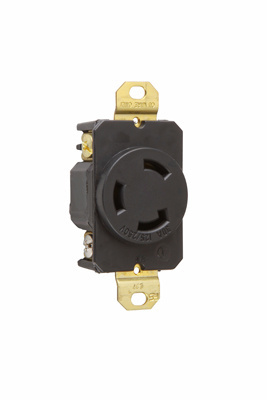

Product image for PAS 3330G R SGL 30A 125/250V T/L GR
Image thumbnail 0
Image thumbnail 1
To:
CC:

PAS 3330G R SGL 30A 125/250V T/L GR

Manufacturer: Legrand Pass & Seymour | Catalog # 3330G | QED Part # 4908697
$112.46 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Receptacle Single 30A 125/250V Turnlok®

Technical Information

Amperage
30 Amp
Applications
Industrial
Indoor Outdoor
Indoor
Material
Nylon
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Locking
Size
4.8x3.6x2.4
Type
Single Receptacles
Voltage
125/250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007333077
Color
Black
Product UPC
78500733307
UNSPSC
39121403

Dimensions

Depth
0.97 Inch
Height
2-3/8 Inch
Warranty Length
1 yr
Width
1.437 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.
