PAS PS5469XHG STR BLD CONN 3W 20A 2

Manufacturer: Legrand Pass & Seymour | Catalog # PS5469XHG | QED Part # 4908218
$72.71 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure

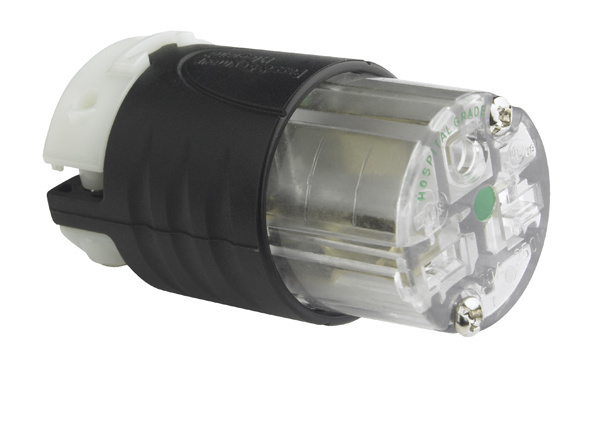

Straight Blade Connector 2-Pole 3-Wire 20A 250V Hospital Grade

Technical Information

Amperage
20 Amp
Applications
Commercial,Healthcare
Conductor Size
18-10 AWG
Grade
Hospital
Indoor Outdoor
Indoor
Material
Nylon
NEMA
6-20R
NEMA Rating
6-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
2.2"
Type
Straight Blade
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007236835
Color
Black
Product UPC
78500723683
UNSPSC
39121402

Dimensions

Depth
2.638 Inch
Height
1.516 Inch
Warranty Length
1 yr
Width
1.516 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Unit arrives completely ready-to-wire, cuts installation time significantly.
  • Nylon housing provides impact and chemical resistance.
  • Rugged two-piece cord grip provides more uniform cord retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Tri-drive assembly screws are standard on Hospital Grade plugs and connectors (angle plugs not included).
  • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
  • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
  • Cord-grip screws recessed to protect installer against screwdriver head slippage.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • Federal Spec Listed
  • cULus Listed
