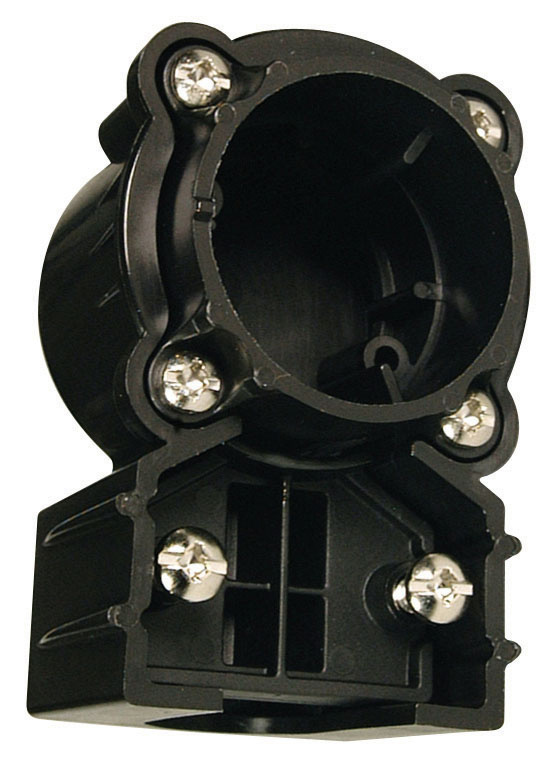

PAS EHU15AN ANGLE ADAPTER 15/20A EH

Manufacturer: Legrand Pass & Seymour | Catalog # EHU15AN | QED Part # 4907674
$32.28 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
Angle Adapter15/20A Extra Hard Use (EHU) Straight Blade

Technical Information

Amperage
20 Amp
Applications
Commercial
Grade
Specification
Indoor Outdoor
Indoor
Material
Thermoplastic
Size
3"
Type
Straight Blade

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007165395
Color
Black
Product UPC
78500716539
UNSPSC
39121402

Dimensions

Depth
1.37 Inch
Height
2.97 Inch
Warranty Length
1 yr
Width
1.94 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Angle plugs and adapters both allow for 4-position face rotation.
  • Tri-drive assembly and cord-grip screws are standard on all angle adapters.
  • Angle adapter (sold separately as catalog number EHU15AN) retrofits on all Pass & Seymour EHU-style Straight Blade plugs and connectors. Simply remove the straight handle body from the plug or connector face assembly and replace with the angle adapter.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
