PAS TR20USBPDWCC6 30W PWR DELIVERY

Manufacturer: Legrand Pass & Seymour | Catalog # TR20USBPDWCC6 | QED Part # 4906825
$156.72 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure

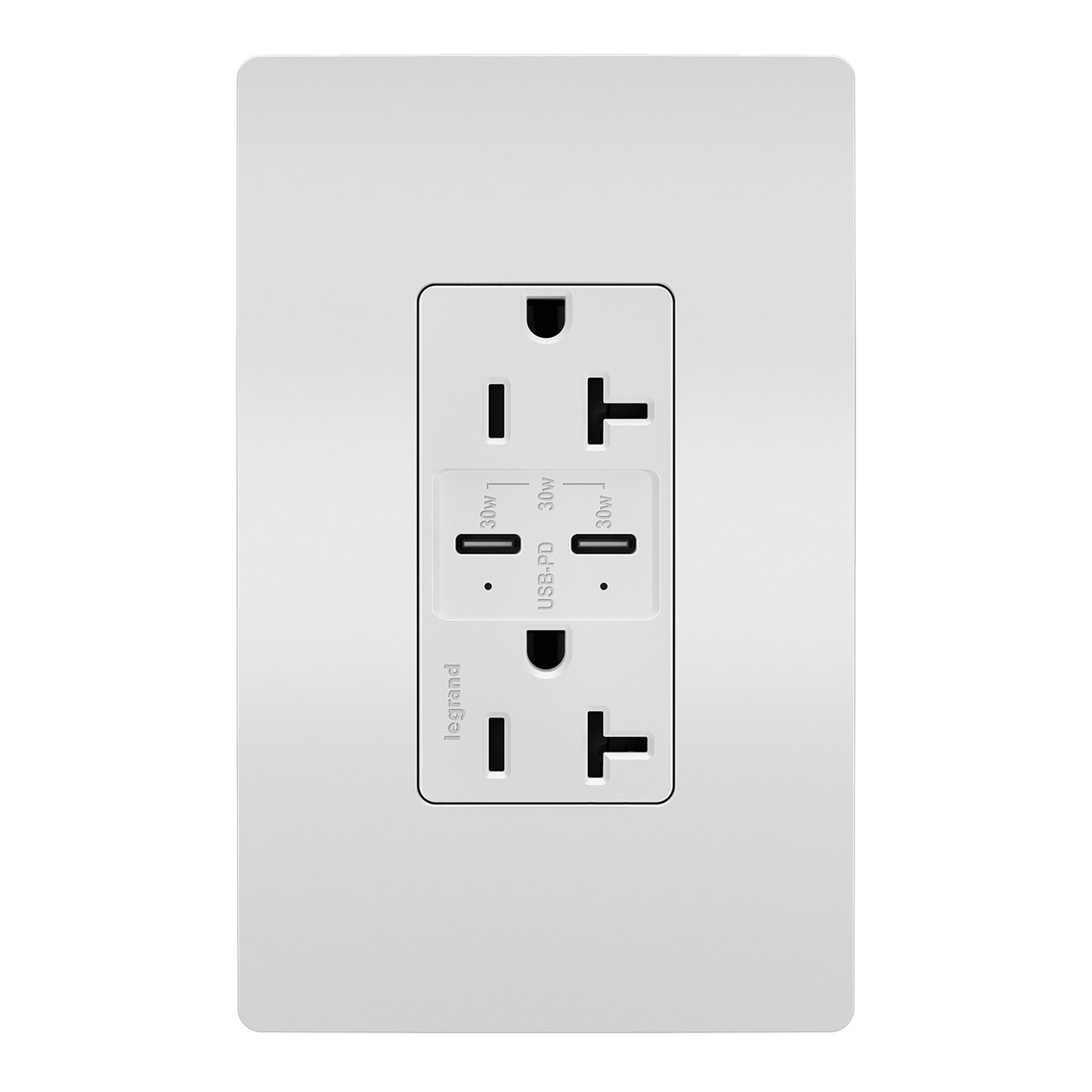

20A Tamper-Resistant Ultra Fast PLUS Power Delivery USB Type CC OutletMade exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
20 Amp
Applications
Commercial
Frequency
60 Hz
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Box
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Tamper-Resistant,USB-Charging
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007290028
Color
White
Finish
Matte
Product UPC
78500729002

Dimensions

Depth
1.42 Inch
Height
2.63 Inch
Warranty Length
1 yr
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Features
  • Charge the latest devices up to 2X as fast, thanks to 6 amps and a whopping 30W of power courtesy of advanced Power Delivery
  • Built for intelligent charging, the outlet detects and delivers the precise amount of power needed to maximize charging speeds
  • Provides fast and convenient built-in charging through two future-proof USB Type-C ports, accommodating new and upcoming devices without an adapter
  • Helpful indicator light lets you see charging status at a glance. Light glows yellow while charging is in progress, and shows green once the device battery is sufficiently charged
  • Includes multiple layers of overcurrent protection, ensuring the outlet and your favorite devices can charge at optimal levels without risk of damage
  • All Legrand USB Outlets are manufactured through high-quality design, sourcing and production, and backed by a Lifetime Warranty
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect
  • Replaces a traditional outlet easily, in as little as 10 minutes, with features like scalloped cover design and posted side-wire terminal screws for faster installation
  • More color options available to fit any style, including finishes to match current hardware and lighting trends
Certifications
  • RoHS Compliant
  • UL Listed
  • cULus Listed
