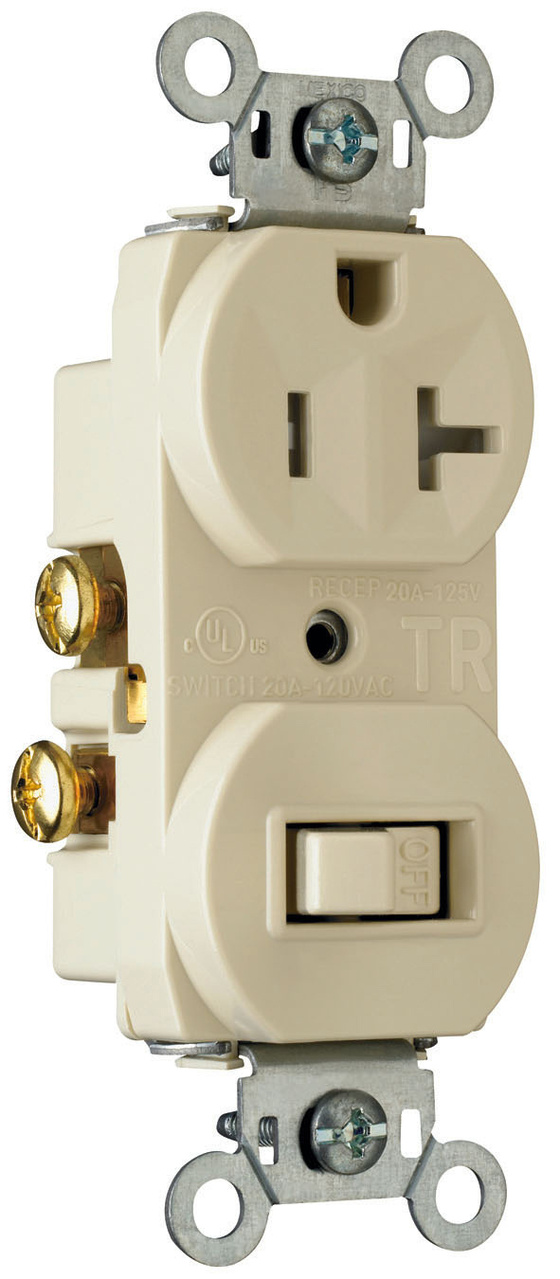

Product image for Pass & Seymour 671-TRLA Single Pole Switch, Tamper-Resistant Receptacle, 20 amps 120V - Light Almond
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour 671-TRLA Single Pole Switch, Tamper-Resistant Receptacle, 20 amps 120V - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # 671TRLA | QED Part # 4905743
$91.76 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
Our standard Pass & Seymour combination switches allow you to add lights to any room in your home without having to add or replace wall boxes. This tamper-resistant version features a dual mechanical shutter system to help prevent the insertion of foreign objects, making it much safer and more convenient than plastic outlet caps. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Action
Recptacle,SP
Actuator
Toggle Switch
Amperage
20 Amp
Applications
Hospitality,Residential
Connection Type
Side Wire
Contact Configuration
N-O
Contact Rating
120 V
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
5-20R
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Cycles
30000
Operating Temperature
Maximum continuous +60degrees C, minimum -30degrees C
Size
1.32 L x 0.94 W x 4.06 H In
Switch Type
Toggle
Tc Connection
Side wire
Type
Combination,Outlet,Switch,Tamper-Resistant
Voltage
120 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007240740
Color
Almond
Finish
Satin
Product UPC
78500724074
UNSPSC
39121406

Dimensions

Depth
1.15 Inch
Height
4.06 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Easily accessible break-off separate or common feed.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
