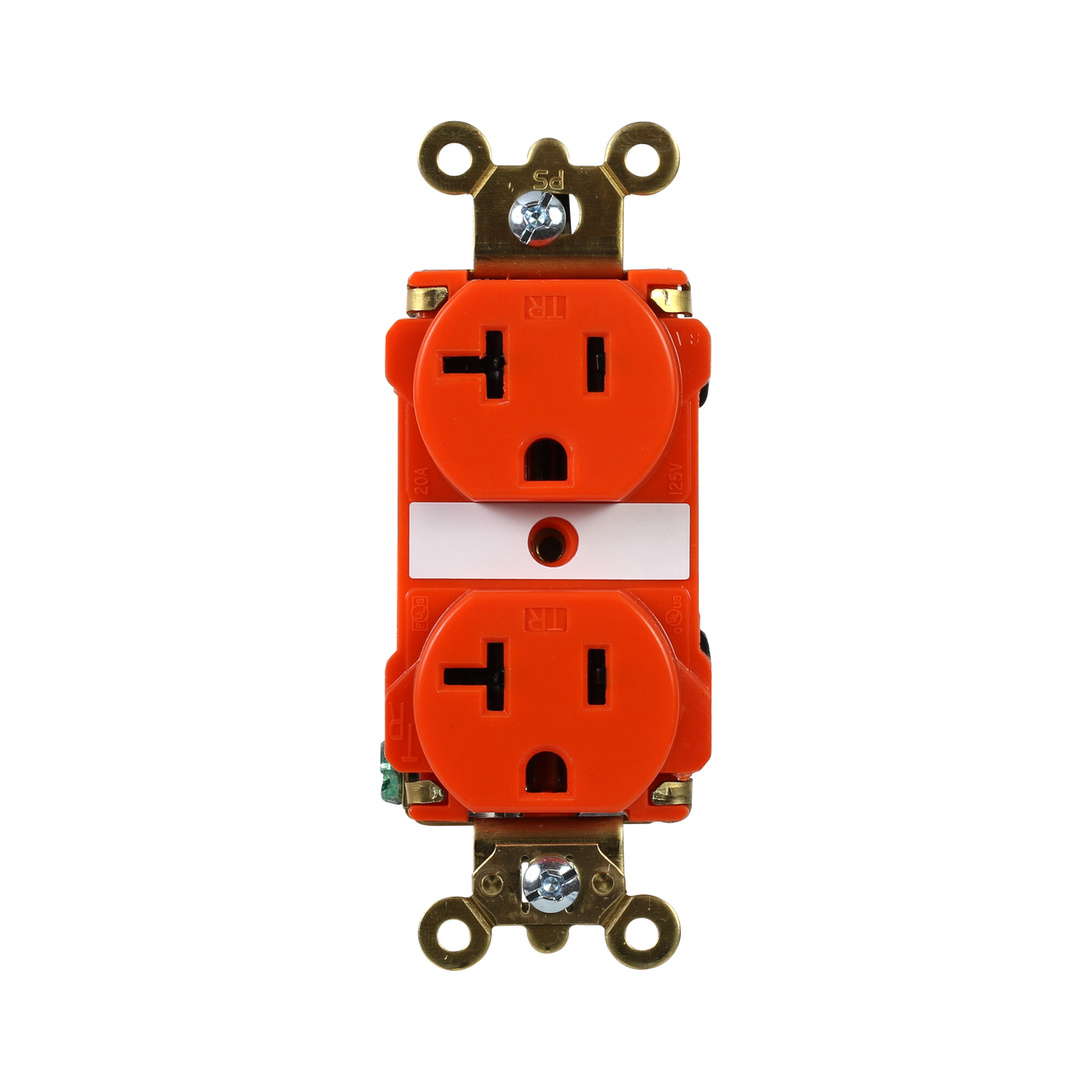

Image thumbnail 4
To:
CC:

PAS TR63OR TR DUP RECEPT 20A 125V O

Manufacturer: Legrand Pass & Seymour | Catalog # TR63OR | QED Part # 4903273
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Tamper-Resistant Spec Grade Receptacles, Back and Side Wire, 20A, 125V

Technical Information

Amperage
20 Amp
Applications
Commercial
Indoor Outdoor
Indoor
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade,Tamper-Resistant
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007451764
Color
Orange
Product UPC
78500745176

Dimensions

Depth
0.9 Inch
Height
2-3/4 Inch
Warranty Length
1 yr
Width
1.625 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Extra heavy-duty brass, one-piece mounting strap with integral ground.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Impact-resistant nylon face and back body.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
