P&S 8300OR OR

Manufacturer: Legrand Pass & Seymour | Catalog # 8300OR | QED Part # 4903272
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

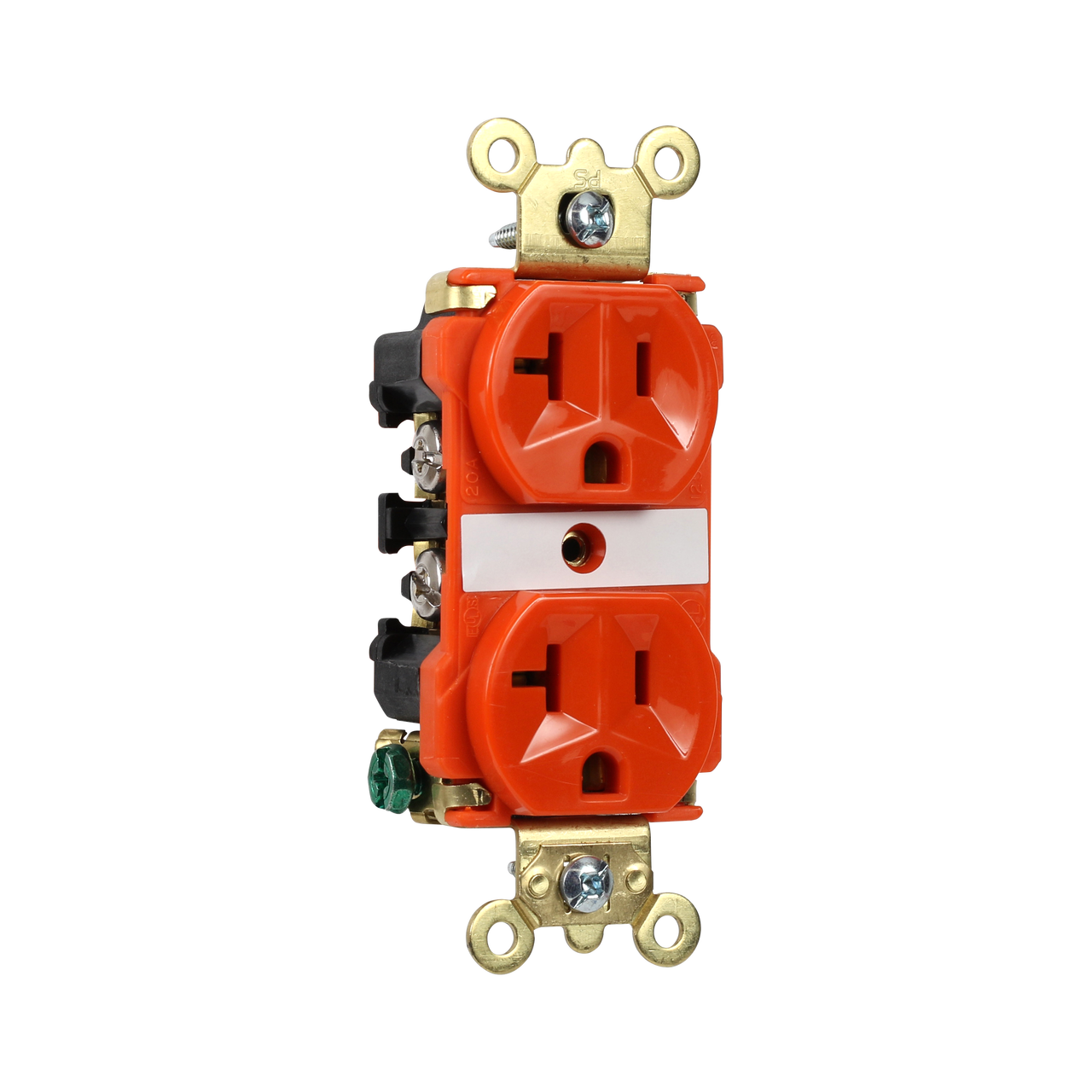

Extra Heavy-Duty Hospital Grade Duplex Receptacle Back and Side Wire 20A 125V

Technical Information

Amperage
20 Amp
Applications
Commercial,Healthcare
Indoor Outdoor
Indoor
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Hospital Grade,Straight Blade
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007451740
Color
Orange
Product UPC
78500745174

Dimensions

Depth
0.866 Inch
Height
2-3/4 Inch
Warranty Length
1 yr
Width
1.625 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • One-piece nickel-plated brass mounting strap with integral ground.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Oversized #10 deep tri-drive head brass terminal and ground screws.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External nickel-plated screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • Federal Spec Listed
  • cULus Listed
