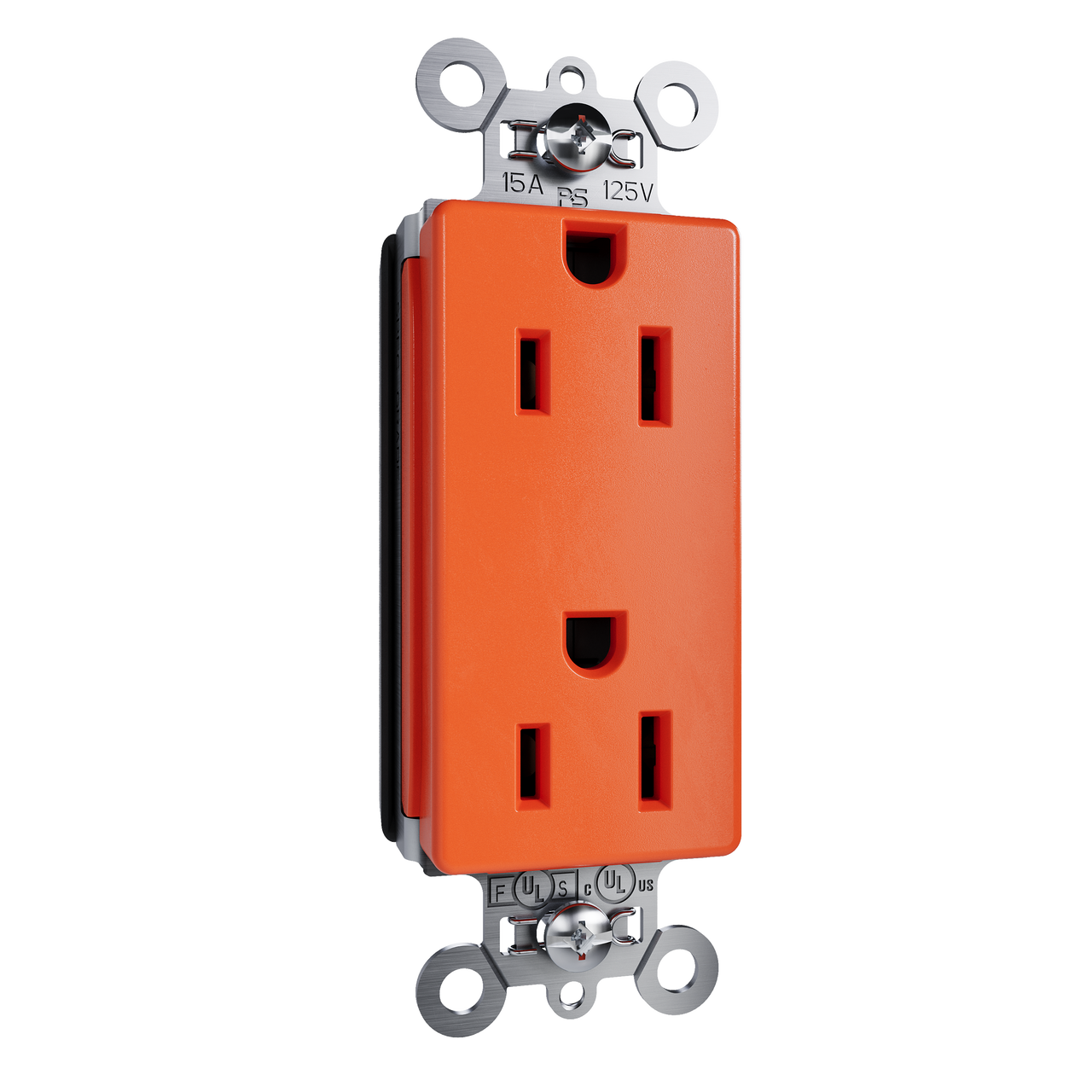

Product image for PAS PT26252OR PT DUP DECO RECEPT 15
Image thumbnail 0
Image thumbnail 1
To:
CC:

PAS PT26252OR PT DUP DECO RECEPT 15

Manufacturer: Legrand Pass & Seymour | Catalog # PT26252OR | QED Part # 4903270
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
PlugTail® Decorator Spec Grade Receptacles, 15A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.

Technical Information

Amperage
15 Amp
Applications
Commercial
Indoor Outdoor
Indoor
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007451726
Color
Orange
Product UPC
78500745172

Dimensions

Depth
5/8 Inch
Height
2-3/4 Inch
Warranty Length
1 yr
Width
1.5 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
