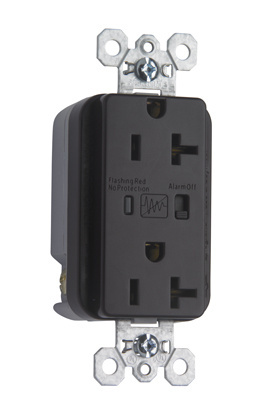

Product image for Pass & Seymour 5362-BKSP 20A 125V Duplex Surge Suppressor Receptacle - Black
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour 5362-BKSP 20A 125V Duplex Surge Suppressor Receptacle - Black

Manufacturer: Legrand Pass & Seymour | Catalog # 5362BKSP | QED Part # 4900243
$139.85 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Specification grade surge suppressor receptacle with audible alarm and LED indicator, ideal for heavy duty power applications. By Pass & Seymour. Back & Side Wire, 20amp 125volt, White.

Technical Information

Amperage
20 Amp
Applications
Commercial
Connection Type
Back Wire,Side Wire
Duty Rating
Extra Heavy Duty
Frequency
60 Hz
Grade
Specification
Indicator
Audible Alarm,LED
Indoor Outdoor
Indoor
Material
Thermoplastic
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade,Surge Protected
Size
.94" Depth x 1.75" Width x 3.82" Height
Tc Connection
Side & Back Wire
Type
Duplex
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007028805
Class
IG
Color
Black
Product UPC
78500702880
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
2.8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 300 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
  • Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
