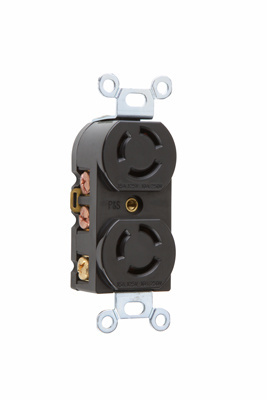

PAS 7580 R DUP 15A 125V 10A 250V T/

Manufacturer: Legrand Pass & Seymour | Catalog # 7580 | QED Part # 4899466
$87.24 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Receptacle Duplex 15A 125V 10A 250V Turnlok®

Technical Information

Amperage
15 Amp
Applications
Industrial
Enclosure
Non-NEMA
Indoor Outdoor
Indoor
Material
Nylon
NEMA Rating
Non-NEMA
Number of Wires
3 Wire
Size
1.500 L x 1.199 W x 4.031 H In
Type
Duplex, Receptacles
Voltage
125/250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007758009
Color
Brown
Product UPC
78500775800
UNSPSC
39121403

Dimensions

Depth
0.97 Inch
Height
2.635 Inch
Length
2.3 Inch
Warranty Length
1 yr
Width
1.437 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.
