PAS IG4760 TURNLOK SINGLE REC 3W 15 | Quality Electrical Distribution (QED)

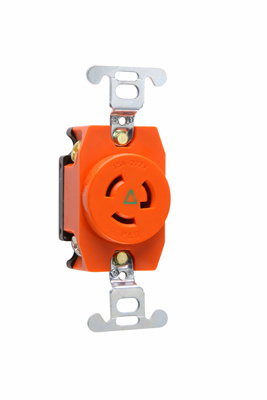

Product image for PAS IG4760 TURNLOK SINGLE REC 3W 15
Image thumbnail 0
Image thumbnail 1
To:
CC:

PAS IG4760 TURNLOK SINGLE REC 3W 15

Manufacturer: Legrand Pass & Seymour | Catalog # IG4760 | QED Part # 4899434
$99.37 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Turnlok® Single Receptacle 3-Wire 15A 277V Isolated Ground

Technical Information

Amperage
15 Amp
Applications
Industrial
Indoor Outdoor
Indoor
Material
Nylon
NEMA
L7-15
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Locking
Receptacle Type
Locking
Size
4.18x1.68x2
Type
Isolated Ground
Voltage
277 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007647600
Color
Orange
Finish
Matte
Product UPC
78500764760
UNSPSC
39121403

Dimensions

Depth
4.03 Inch
Height
1.23 Inch
Warranty Length
1 yr
Width
1.437 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
Features
  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • One-piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability. Accepts #14-#10 AWG.
