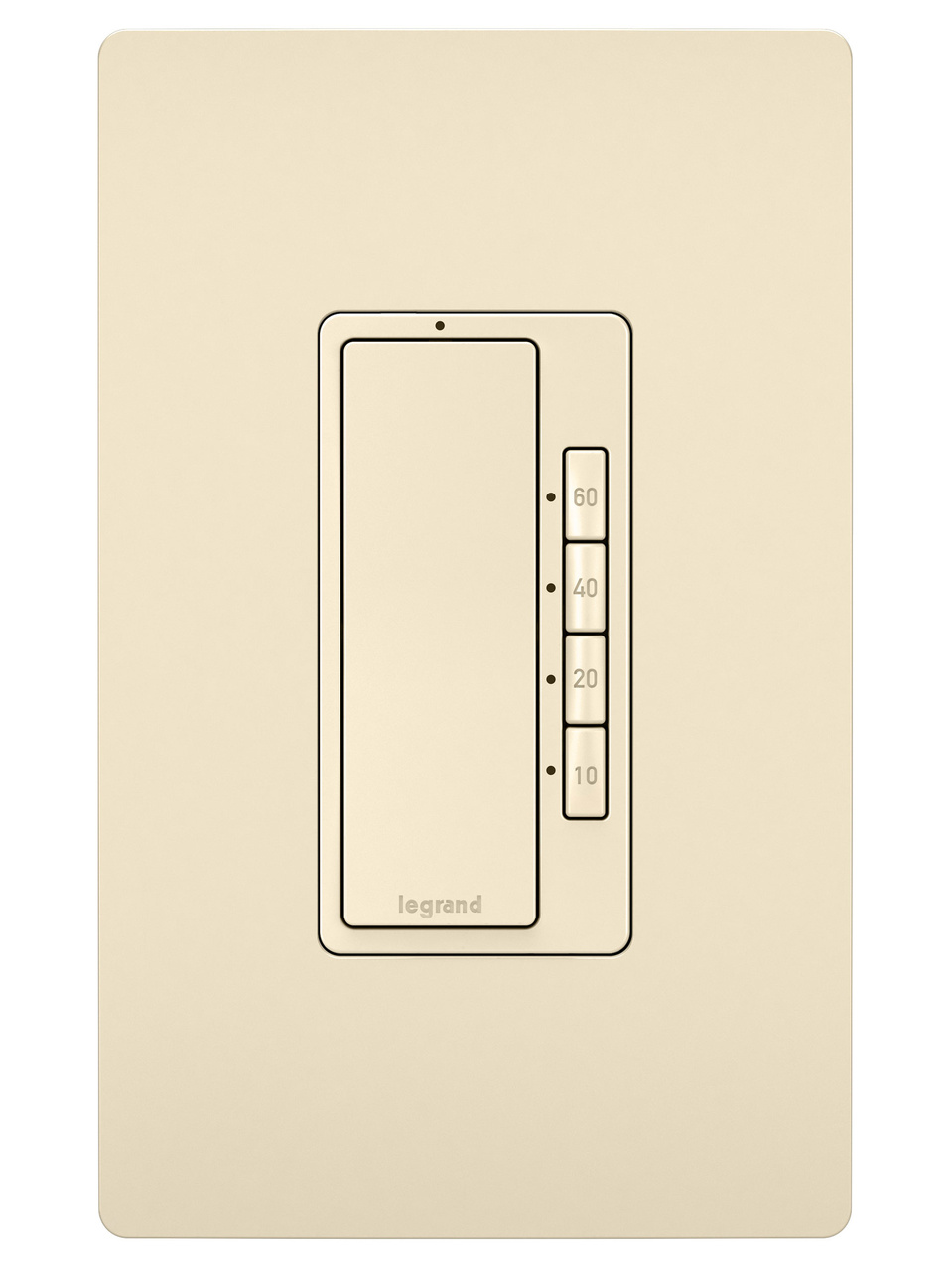

Pass & Seymour RT2-LA 5-Button 120 VAC 1/6 Hp Light Almond Digital Timer

Manufacturer: Legrand Pass & Seymour | Catalog # RT2LA | QED Part # 4898517

$38.03 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Never worry about leaving the lights or fan on, while also reducing energy costs, with the radiant® 4-Button Digital timer. Great to use with attic fans, bathroom and closet lights, heat lamps, and in spaces like basements or garages. Manually turn the light on or off at the paddle switch, or use the included buttons for preset auto-off times of 60, 40, 20 and 10 minute delays. With the convenience of automated control, timers are a great upgrade for garages, laundry rooms and more. Part of the radiant Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Action
Single Pole
Amperage
15 Amp
Applications
For Commercial, Residential Applications
Coil Voltage
120 V
Connection Type
Back Wire,Side Wire
Contact Rating
600 W
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Polycarbonate
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
Between 0degrees C and 40degrees C
Size
1.88" Depth x 1.69" Width x 3.281" Height
Style
Rocker
Switch Type
Paddle
Tc Connection
Back & Side Wired
Temperature Rating
0 degrees C to 40 degrees C
Type
4-Button, 1-Gang
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007034363
Color
Light Almond
Finish
Satin
Product UPC
78500703436

Dimensions

Depth
1.88 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Eco-Benefit Information
  • RoHS Compliant
  • LEED Contribution: Yes
Features
  • Offers automated control of lights, fans, and motor loads, reducing energy waste and lowering costs.
  • Four preset countdown times of 60, 40, 20, 10 minutes.
  • Manual ON/OFF paddle control.
  • White LED glows when OFF for easy location in the dark.
  • Supported load types: 0-800 VA E-Ballast, MLV, ELV, CFL, LED Drivers, fluorescent or incandescent, 1/6 hp
  • Visual LED indicator light will move to next lowest indicator as the timer counts down.
  • For covering patents, see www.legrand.us/patents.
