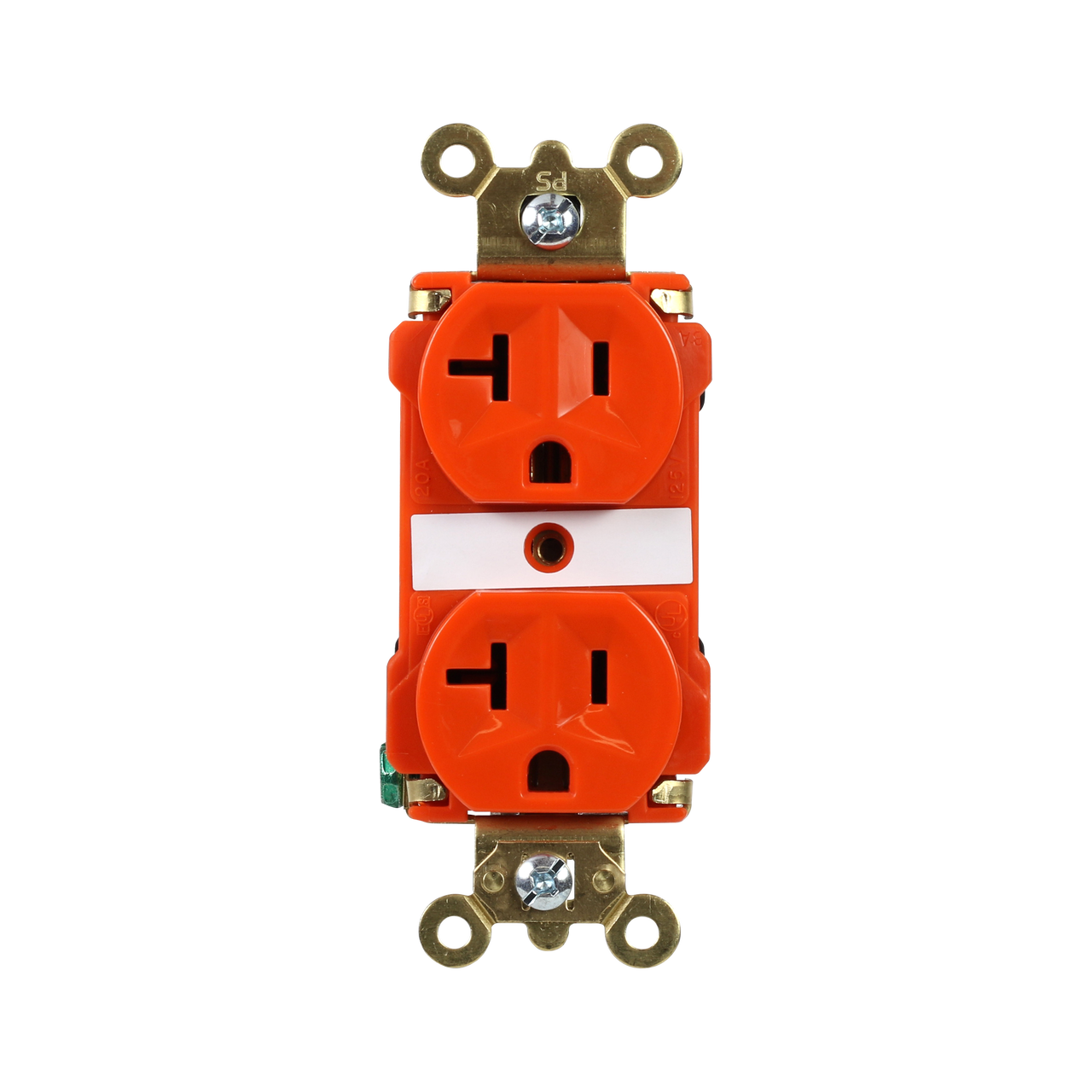

Product image for PAS 5362AOR DUP RECEPT 20A 125VAC O
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

PAS 5362AOR DUP RECEPT 20A 125VAC O

Manufacturer: Legrand Pass & Seymour | Catalog # 5362AOR | QED Part # 4898480
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 125V

Technical Information

Amperage
20 Amp
Applications
Commercial,Industrial
Indoor Outdoor
Indoor
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007451757
Color
Orange
Product UPC
78500745175

Dimensions

Depth
0.9 Inch
Height
2-3/4 Inch
Warranty Length
1 yr
Width
1.625 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • One-piece brass mounting strap with integral ground.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Oversized #10 deep tri-drive head brass terminal and ground screws.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
