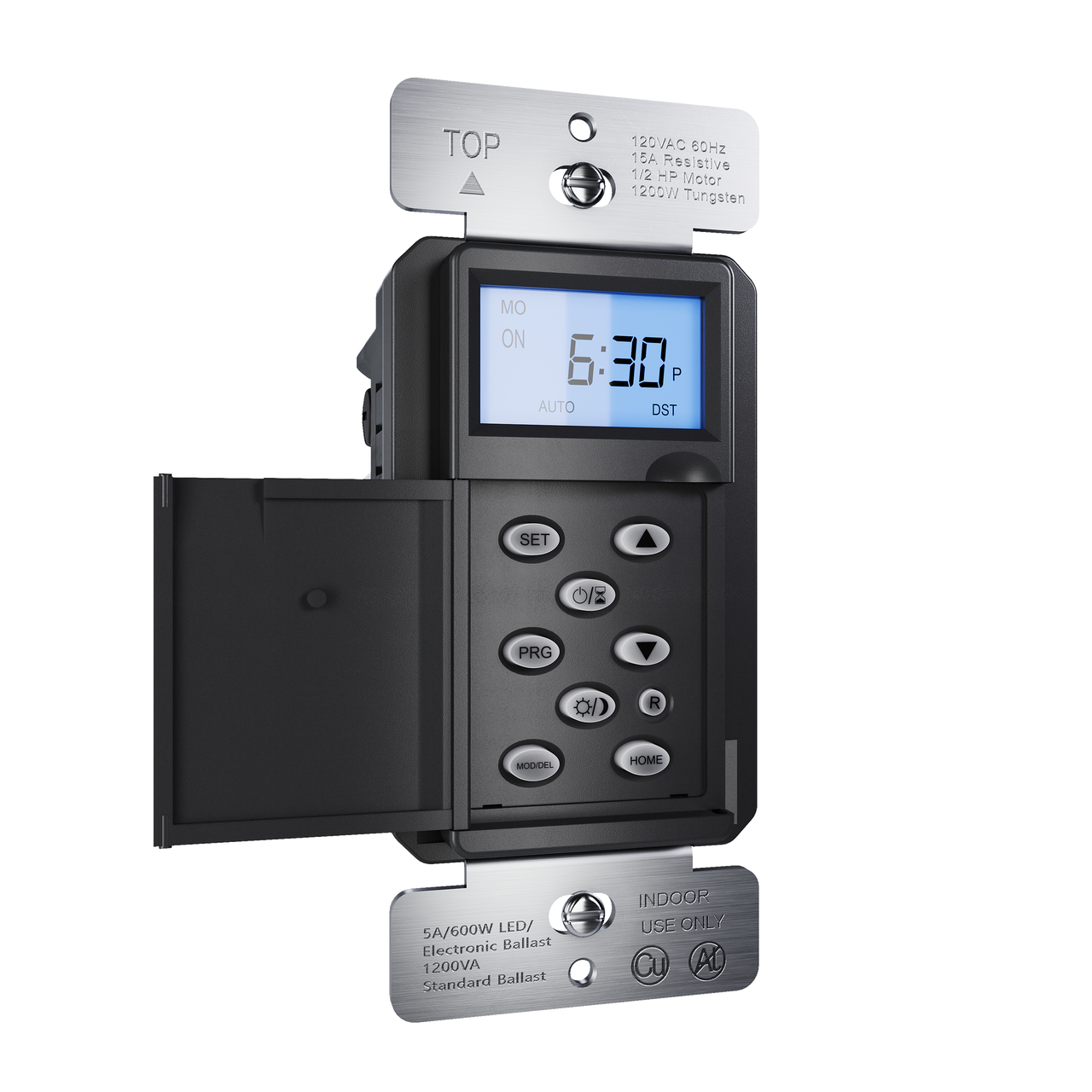

P&S RTPA24BK 600W 1/2HP BK

Manufacturer: Legrand Pass & Seymour | Catalog # RTPA24BK | QED Part # 4850056
$102.14 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Prop 65 Warning Prop 65 Warning Primary Spec Sheet Product Brochure Installation / Instruction Manual
The Programmable 24-hour Astronomic Timer automatically turns lighting and small motor loads on and off based on user programming. It replaces single-pole and 3-way switches for energy savings, convenience and security. This timer is an ideal solution for meeting Title 24 and IECC residential energy code requirements for exterior lighting control. Accounting for daylight savings time and seasonal shifts, the programmable timer switch automatically adjusts sunrise/sunset times and has a rechargeable battery backup in the event of power loss.

Technical Information

Applications
Hospitality,Light Commercial,Multi-Dwelling Unit,Residential
Connection Type
Wired
Frequency
60 Hz
Load Type
CFL,Incandescent,LED
Material
Steel
Number of Poles
3 Pole
Operating Temperature
40 degrees F
Type
Timer
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007454642
Color
Black
Finish
Gloss
Product UPC
78500745464
Weight
0.29 lb

Dimensions

Depth
1.42 Inch
Height
4.11 Inch
Length
1.71 Inch
Warranty Length
5 yr
Width
1.73 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
Yes
Certifications
  • RoHS Compliant
  • UL Listed
  • cULus Listed
Features
  • Total of 7 ON and 7 OFF programmable settings for 24 hour scheduling every day of the week
  • Astronomic feature automatically adjusts dusk to dawn times based on location
  • Automatically adjusts for daylight savings time
  • Built in rechargeable battery backup lasts up to 14 days to store programs in the event of a power loss
  • Manual ON override returns to programmed settings within 6 hours
  • Meets California Title 24 (2019/2022 Part 6: Outdoor Control Device) and 2021 IECC requirements
  • 4 Operating Modes Included: Manual, Automatic, Random, Countdown
  • Replaces standard wall switch, 1P/3W installations
  • Back-lit LCD Screen
  • Works with LED, CFL and Incandescent Lighting
