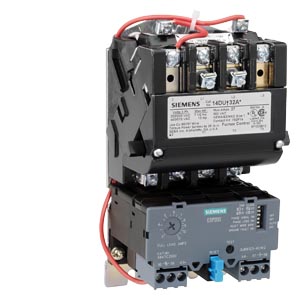

Siemens 14DUD32AC 240/440 to 480 VAC 5.5 to 22 Amp 10 Hp 3-Phase 3-Pole Size 1 Non-Reversing NEMA Motor Starter

Manufacturer: Siemens | Catalog # 14DUD32AC | QED Part # 4734507
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Non-reversing motor starter, Size 1, Three phase full voltage, Solid-state overload relay, OLR amp range 5.5-22A, 220#240/440#480VAC 60Hz coil, Non-combination type, Enclosure type (open), No enclosure

Technical Information

Amperage
27 Amp
Applications
Single phase and polyphase motors
Motor Power
10 hp
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Cycles
10000000
Power Supply
600 V
Reset Type
Manual, automatic, & remote
Size
1
Tc Connection
Screw
Type
Non Reversing Motor Starter
Voltage
600 Volt
Wattage
8.6 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
Class 14

General Product Info

12-Digit UPC
783087817821
Product UPC
78308781782
Weight
3.000 lb

Dimensions

Depth
95.25 mm
Height
188.976 mm
Length
10.3 Inch
Width
146.049 mm

Certifications and Compliance

Country of Origin
Mexico
