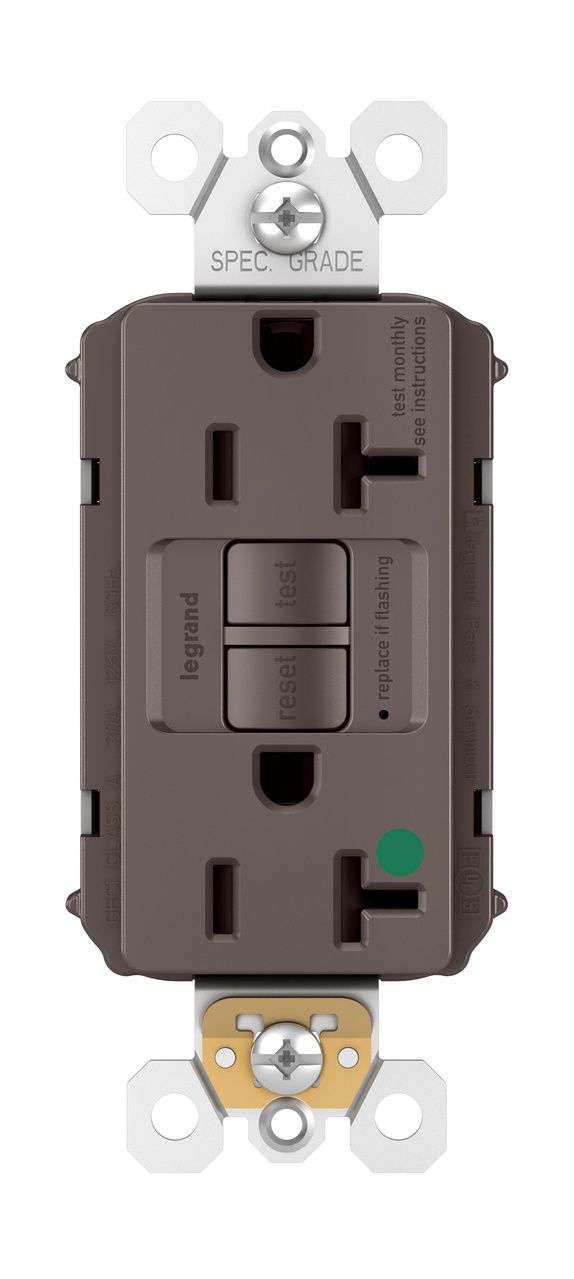

Pass & Seymour PT2097-HG 20A 125V Plugtail Self-Test GFCI Duplex Receptacle, Hospital Grade - Brown

Manufacturer: Legrand Pass & Seymour | Catalog # PT2097HG | QED Part # 4720797
$54.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail information, visit our PlugTail Headquarters.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
For Commercial, Residential Applications
Connection Type
Built-In
Frequency
60 Hz
Grade
Hospital
Grounding
Grounding
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Hospital Grade
Tc Connection
Built-in Connector
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Self-Test, Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007049114
Color
Brown
Environmental Conditions
95% Relative Humidity
Product UPC
78500704911

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
Certifications
  • cULus Listed
