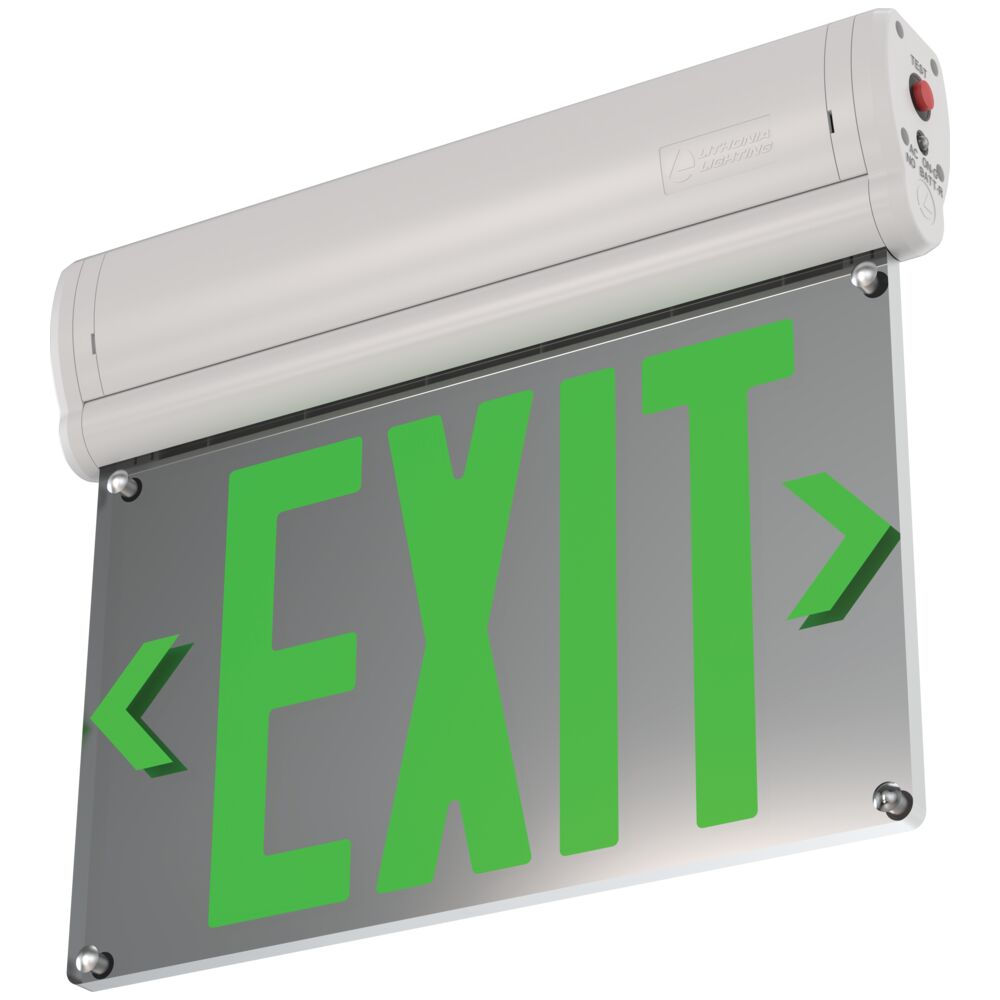

LITH BE W G SM M6 BASICS™ Edge-Lit

Manufacturer: Lithonia Lighting | Catalog # BEWGSMM6 | QED Part # 4687979
*Call For Price*
Log in or register to view your price, purchase history, and more!
Available for Delivery

For Delivery

Check another branch
Primary Spec Sheet

Technical Information

Applications
Education,Government,Healthcare,Hospitality,Offices & Banks,Retail
Lamp Type
LED
Lens Color
Silver Mirror
Lens Material
Acrylic
Material
Polycarbonate
Mounting Type
Recessed,Surface
Number of Lamps
1
Power Source
Hardwired
Standard
CSA Ceritified (C22.2 60601-1, C22.2 60950-1, C22.2 21),ETL Listed,NAFTA,NEC (2011Article 517),NFPA (99 2012 Ed),UL Listed (60601-1, 60950-1, 1363A, 1449)
Voltage
120 Volt
Wattage
3.6 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197589464894
Color
White
Construction
New Construction
Environmental Conditions
Indoor
Finish
Matte
Product Type
Emergency Exit Sign
Product UPC
19758946489
Shape
Square
Weight
2.43 lb

Dimensions

Height
9.92 Inch
Length
12.13 Inch
Warranty Length
2 yr
Width
1.82 in

Certifications and Compliance

Country of Origin
China
Features
  • The Basics™ Edge-Lit Exit Sign from Lithonia Lighting provides a high-end aesthetic while remaining budget friendly. The exit panel rotates 0-180° to fit any mounting orientation and offers an internal switch for AC or Battery Back-Up (EL) for added flexibility.
  • APPLICATIONS: Ideal for applications such as schools, hospitals, office spaces, strip malls and multi-family.
  • RATINGS: UL damp location listed 32-104°F (0-40°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. Meets all applicable FCC Title 47, Part 15, Subpart B.
  • VOLTAGE: Multi-volt, 120-277VAC, 50/60hz.
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years.
  • DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant, and corrosion-proof
  • BATTERY: AC or Battery Back-up (EL). Using an internal switch, the end user has the ability to select between normal power (AC) or battery backup (EL) operation depending on the application (Patent Pending)
  • WARRANTY: 2-year limited warranty
