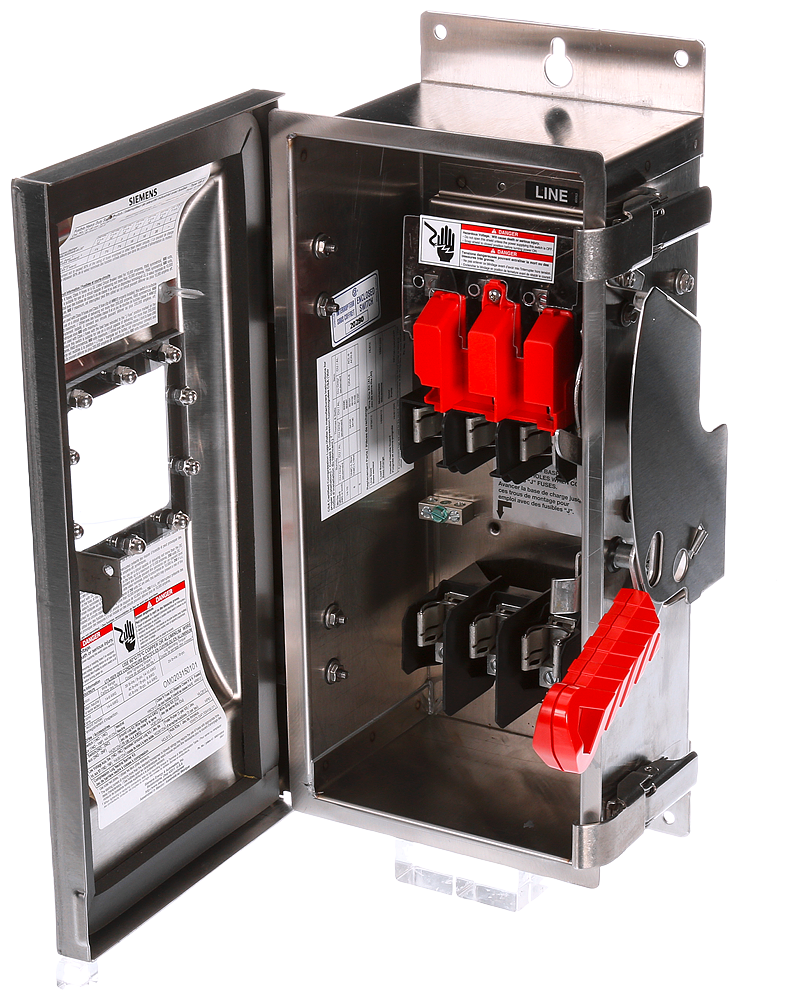

Product image for Siemens HF362SSW HDSS FUS 3P3W 600V 60A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Siemens HF362SSW HDSS FUS 3P3W 600V 60A

Manufacturer: Siemens | Catalog # HF362SSW | QED Part # 4674262
$3,310.11 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Wire Fused in a type 4/4X 316 grade Stainless Steel enclosure. Rated 600VAC (60A). Special features: viewing window.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
60 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
NEMA4X
Material
Stainless Steel
Number of Poles
3 Pole
Operating Cycles
10000
Operating Temperature
-29 degrees C
Size
N/A
Tc Connection
MECHANICALLUGS
Type
HEAVYDUTYSWITCH
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
040892169102
Product UPC
04089216910
Weight
23.600 lb

Dimensions

Height
8.1 Inch
Length
22.2 Inch
Width
14.400 in

Certifications and Compliance

Country of Origin
Mexico
