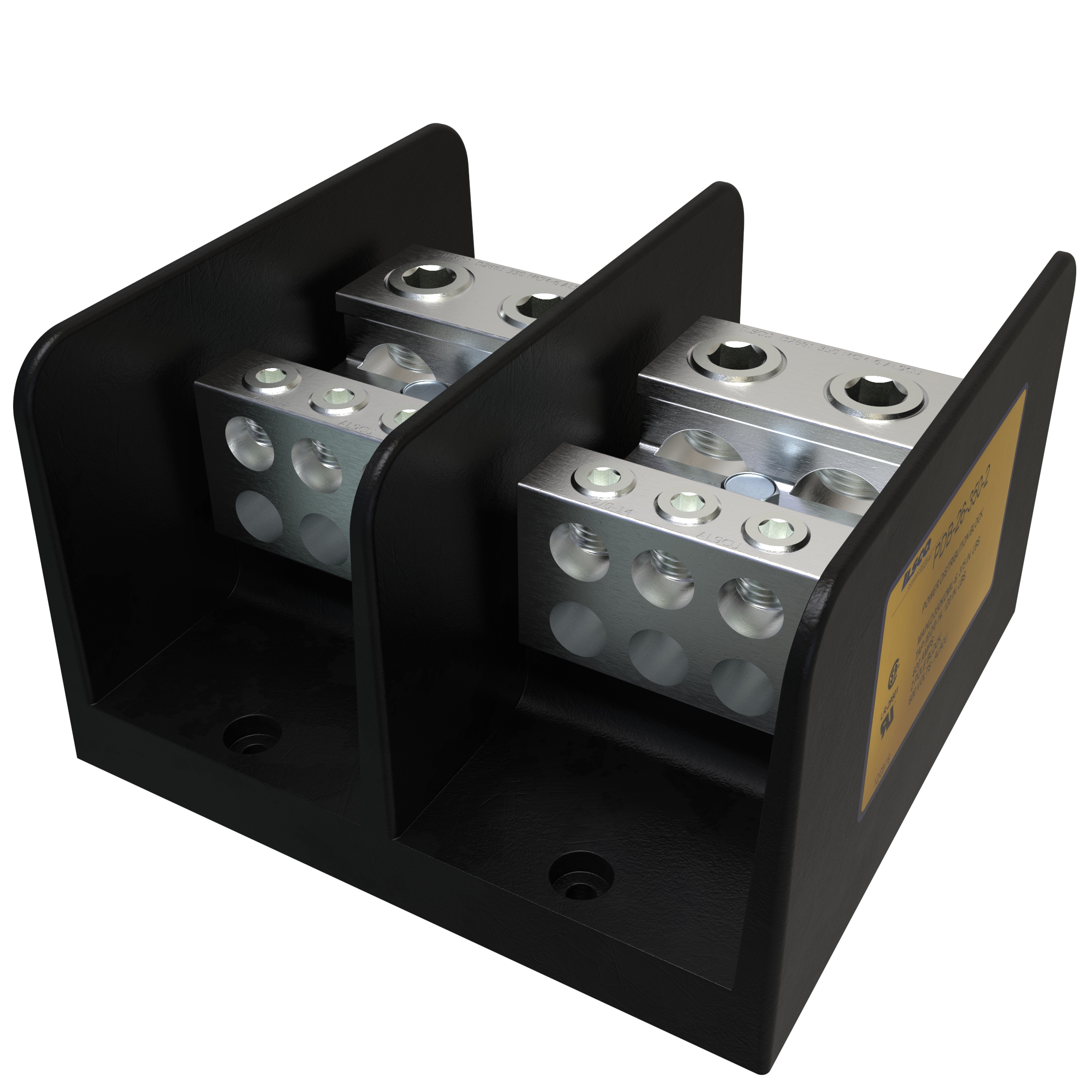

Image thumbnail 2
To:
CC:

ILS PDB-26-350-2 AL MEC 2P LINE(2)3

Manufacturer: Ilsco | Catalog # PDB-26-350-2 | QED Part # 4638040
$459.73 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 8 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Black, 2 poles, 2 ports per pole primary, 6 ports per pole secondary,

Technical Information

Amperage
CU:620 AMP
Applications
Power Distribution Block
Enclosure
Valox
Material
Aluminum
Number of Conductors
8
Number of Poles
2 Pole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669710458
Color
Black
Finish
Tin Plated
Product UPC
78366971045
