ILS AGC-1-B AL MEC 1/2-3/4-1 GND 1/ | Quality Electrical Distribution (QED)

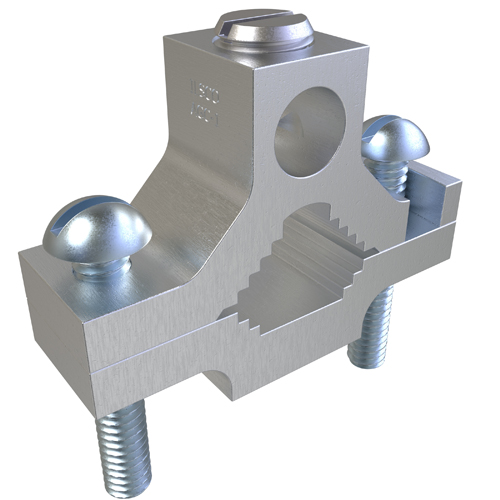

Product image for ILS AGC-1-B AL MEC 1/2-3/4-1 GND 1/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

ILS AGC-1-B AL MEC 1/2-3/4-1 GND 1/

Manufacturer: Ilsco | Catalog # AGC-1-B | QED Part # 4631630
$32.32 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Ground Clamp Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 467 Listed, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, pipe size 1/2, 3/4, 1, Drive Type Main Slotted, bag quantity 1,

Technical Information

Applications
Ground Clamp Connector
Material
Aluminum
Number of Conductors
1
Standard
UL File Number: E34440,UL Specifications: UL 467
Type
AGCB:GRD CLAMP AL/CU BAG
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669000610
Finish
Tin Plated
Product UPC
78366900061
Compare
