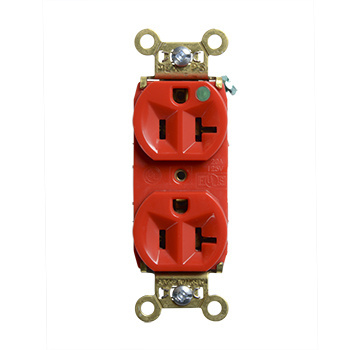

Image thumbnail 3
To:
CC:

Pass & Seymour PS8300-HRED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Nylon Face PVC Body Heavy Duty Duplex Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # PS8300HRED | QED Part # 4617562
$62.52 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Heavy-Duty Hospital Grade Duplex Receptacle Back and Side Wire 20A 125V

Technical Information

Amperage
20 Amp
Applications
Commercial Applications
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Hospital
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-20R
NEMA Rating
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Hospital Grade
Size
1.322 in L x .78 in W x 3.281 in H
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy-Duty, Hospital Grade Receptacle
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007860054
Color
Red
Finish
Matte
Product UPC
78500786005
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Two drive screws anchor strap to back body and face.
  • Tri-drive brass terminal screws.
  • Two back wire holes for more wiring flexibility.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
