Ilsco ULT-9-Z Permaground Copper Grounding C Crimp, Main Conductor Range 2/0-1/0 Sol, Tap Range 2/0-1/0, UL, CSA | Quality Electrical Distribution (QED)

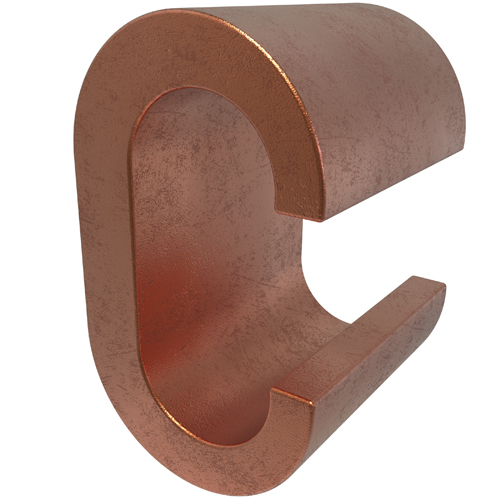

Product image for Ilsco ULT-9-Z Permaground Copper Grounding C Crimp, Main Conductor Range 2/0-1/0 Sol, Tap Range 2/0-1/0, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco ULT-9-Z Permaground Copper Grounding C Crimp, Main Conductor Range 2/0-1/0 Sol, Tap Range 2/0-1/0, UL, CSA

Manufacturer: Cadweld | Catalog # ULT-9 | QED Part # 4608149
$17.28 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Permaground Copper Compression Grounding C Crimp, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 2/0 Str - 1/0 Str and 2/0 Sol - 1/0 Sol, Copper Secondary Conductor 2/0 Sol - 1/0 Sol and 2/0 Str - 1/0 Str, rated for 35 kV, primary color Copper, die index O,

Technical Information

Applications
Copper Compression Grounding C Crimp
Conductor Material
Copper
Conductor Type
Solid,Stranded
Direct Burial?
Yes
Material
Copper
Size
L:1.35;W:0.812;H:0.925 IN
Temperature Rating
90 degrees C
Type
ULT:COPPER C CRIMPS
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Permaground

General Product Info

12-Digit UPC
783669930849
Color
Copper
Product UPC
78366993084
Weight
0.154 lb

Dimensions

Height
0.925 Inch
Length
1.35 Inch
Width
0.812 in
