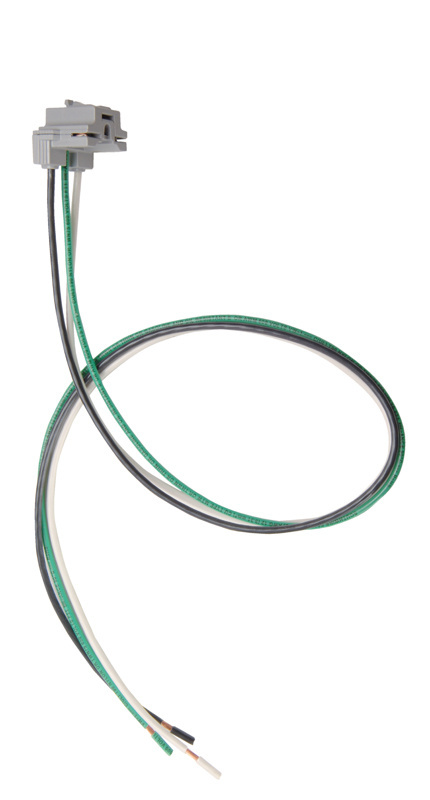

Product image for Pass & Seymour PTRA6-STRB25 PlugTail™ Connector, Right Angle 25" Stranded
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour PTRA6-STRB25 PlugTail™ Connector, Right Angle 25" Stranded

Manufacturer: Legrand Pass & Seymour | Catalog # PTRA6STRB25 | QED Part # 4607089
$24.47 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
PlugTail® Connectors Right Angle Stranded 25""""For detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Applications
Commercial
Conductor Size
12 AWG
Dielectric Strength
2000 V
Indoor Outdoor
Indoor
Material
Polycarbonate
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
7.5 In
Temperature Rating
-40 degrees C
Type
Accessory
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007044577
Color
Gray
Product Series
PlugTail
Product UPC
78500704457
UNSPSC
39121406

Dimensions

Length
25 Inch
Warranty Length
1 yr

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Available in any wire length up to 25 inches, use Configurable Solutions to order.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
