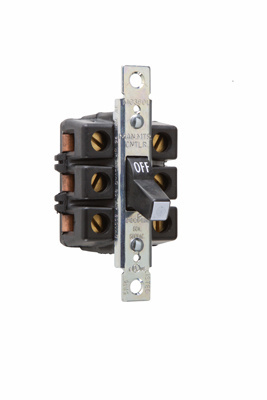

Product image for Pass & Seymour 7863 Manual Control Switch 3pole 60amp 600V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour 7863 Manual Control Switch 3pole 60amp 600V

Manufacturer: Legrand Pass & Seymour | Catalog # 7863 | QED Part # 4585686
$511.98 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Brochure Installation / Instruction Manual
Manual Control Switch 3pole 60amp 600volt

Technical Information

Amperage
60 Amp
Applications
Industrial
Contact Rating
60amp, 600vac
Enclosure
Cold rolled steel
Material
Steel
Mounting Type
Wall
Number of Poles
3 Pole
Power Rating
3 W
Size
4.75"
Type
Manual Controller
Voltage
600 Volt
Wattage
3 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007078633
Color
Black
Product UPC
78500707863

Dimensions

Depth
1.66 Inch
Height
3.26 Inch
Width
1.74 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS
Country of Origin
France
Certifications
  • cULus Listed
Features
  • High horsepower rating, up to 3HP for heavy-duty applications. Compact design provides ease of installation. Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life.
  • Made in USA. Box lug terminals. Wire pockets and thick wall arc barriers. Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements.
  • Type 3R enclosure has 2-1/2 inch, 3/4 inch, and 1 inch concentric knockouts on bottom. Accepts #4 AWG. cULus listed.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
