Mersen STXR480Y05AN XR T1 50kA 480Y

Manufacturer: Mersen | Catalog # STXR480Y05AN | QED Part # 4547072
$303.04 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet

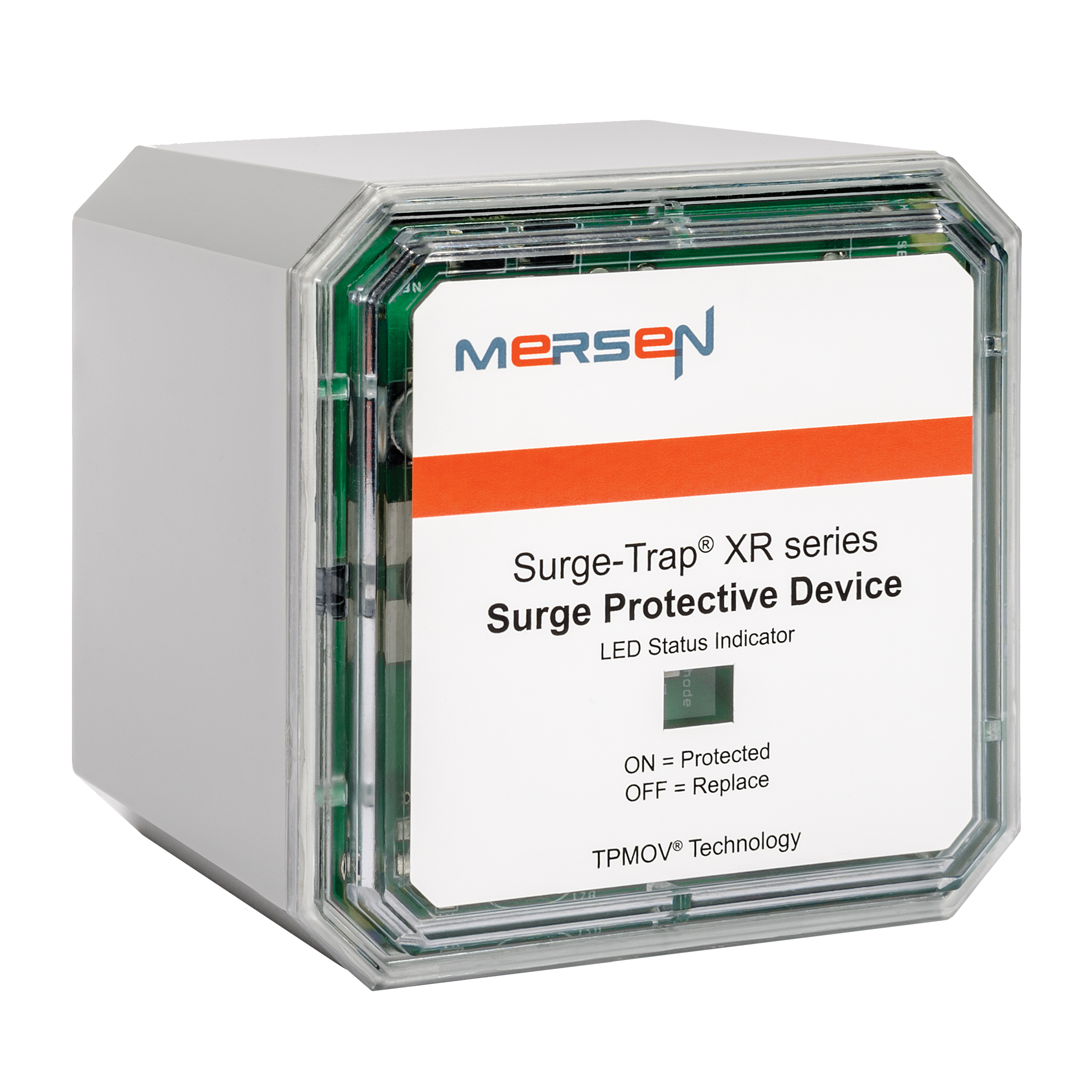

The Surge-Trap STXR Series UL listed Type 1 SPD, a leading choice in the STX series, meets the UL1449 5th Edition standards and is an excellent replacement for outdated surge arrestors. This series incorporates TPMOV® technology, ensuring it is one of the safest options available. The STXR series boasts a compact design and offers flexibility for line or load installation, making it ideal for both branch panel and individual equipment protection.

Technical Information

Applications
Suitable for any Type 1 or 2 SPD application
Current Type
AC
Frequency
50/60 Hz
Indicator
LED,Remote Audible Alarm
Max Discharge Current
50 kA
Max Operating Temperature
85 degrees C
Min Operating Temperature
-40 degrees C
Mounting Type
Panel Mount
Nominal Discharge Current
20 kA
Short Circuit Current Ratng
200000 A
Tc Connection
Pre-wired with 3 ft 12 AWG conductors
Voltage
277/480 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Mersen

General Product Info

12-Digit UPC
782001470371
Housing Material
Polycarbonate
Product UPC
78200147037
Weight
1.8 lb

Dimensions

Height
3.35 Inch
Length
3-1/4 Inch
Width
3.35 in

Certifications and Compliance

Country of Origin
Mexico
