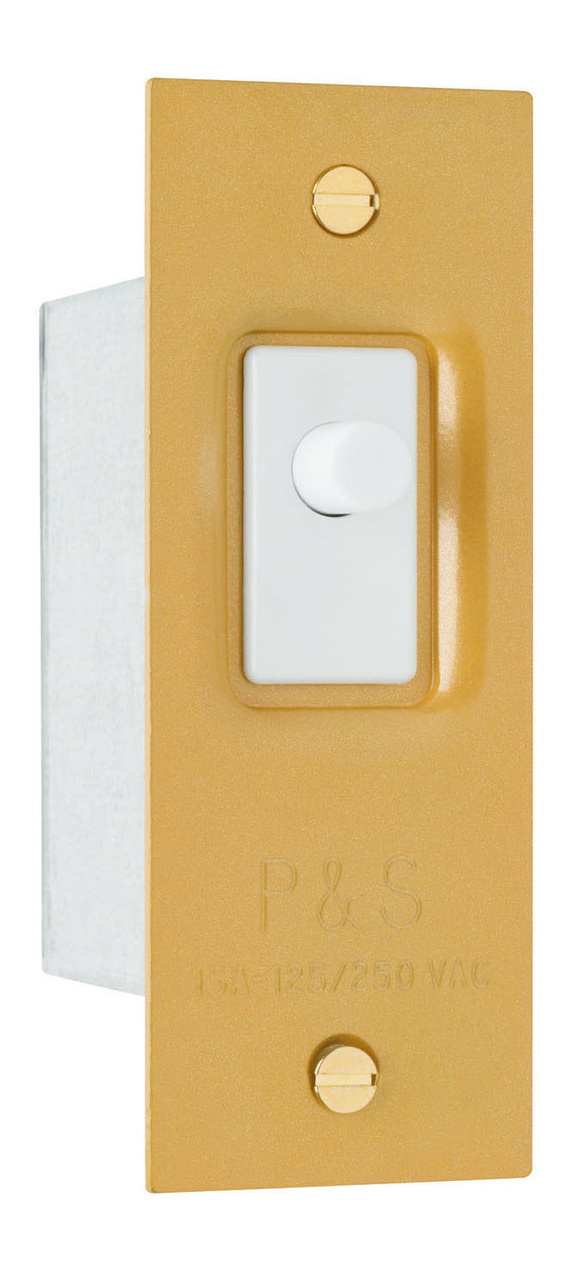

PAS 1201 SWITCH DOOR 15A 120/250VAC

Manufacturer: Legrand Pass & Seymour | Catalog # 1201 | QED Part # 4525245
$74.20 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Pressure Sensitive Door and Canopy Switch 15A 120VAC, 15A 250VAC

Technical Information

Action
SP
Actuator
Push button
Amperage
15 Amp
Applications
Commercial,Residential
Contact Configuration
N-O
Contact Rating
120 V
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Cycles
30000
Operating Temperature
Maximum continuous +60degrees C, minimum -30degrees C
Size
1.516 L x 1.547 W x 4.031 H In
Style
Decorator
Switch Type
Canopy
Type
Switch
Voltage
120 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007120011
Color
White
Finish
Matte
Product UPC
78500712001
UNSPSC
39121507

Dimensions

Depth
1.344 Inch
Height
4.031 Inch
Warranty Length
1 yr
Width
1.516 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.
