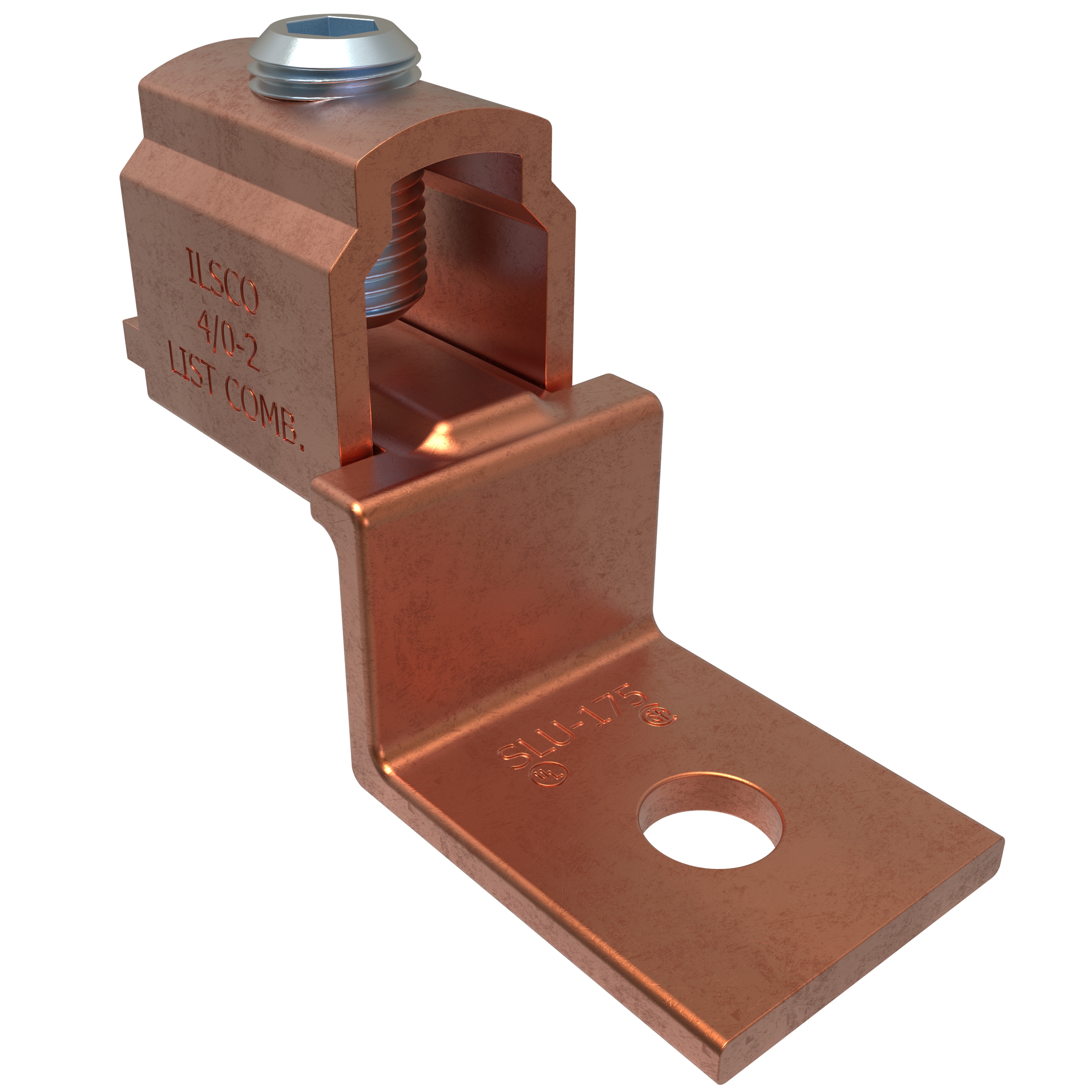

Product image for Ilsco SLU-225 Copper Mechanical Lug Offset, Conductor Range 4/0-2, 1 Port, 1 Hole, 5/16in Bolt Size, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco SLU-225 Copper Mechanical Lug Offset, Conductor Range 4/0-2, 1 Port, 1 Hole, 5/16in Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # SLU-225 | QED Part # 4486579
$25.25 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 4/0 Str - 2 Str, 1 conductors, 1 ports/wireways, Drive Type Main 7/32 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For Terminating Connector
Bolt Size
5/16 in
Conductor Material
Copper
Conductor Size
2-4/0 AWG
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
11/32 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
SLU, Offset Tongue, Straight
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669833751
Color
Copper
Finish
Bare
Product UPC
78366983375
Weight
0.213 lb

Dimensions

Height
1.683 Inch
Length
2.594 Inch
Width
1 in

Certifications and Compliance

Country of Origin
India
