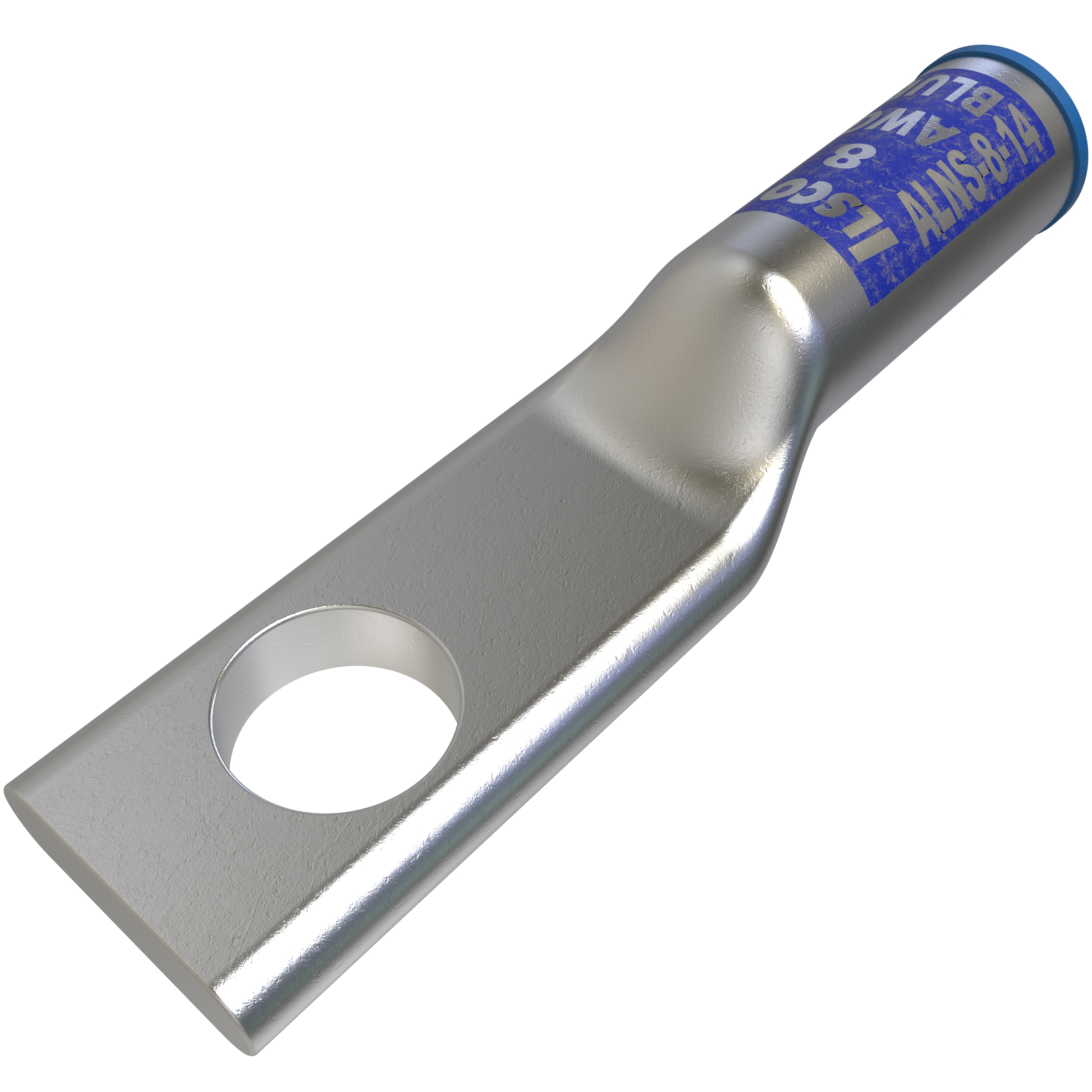

Product image for Ilsco ALNS-8-14 SureCrimp® Aluminum Compression Lug, Conductor Size 8, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco ALNS-8-14 SureCrimp® Aluminum Compression Lug, Conductor Size 8, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALNS-8-14 | QED Part # 4486361
$10.40 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 8 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Blue, primary color Silver, die index 374,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
0.602 in
Barrel Type
Long
Color Coding
Blue
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.281 in
Number of Holes
1 Hole
Size
L:1.672;W:0.435;H:0.33 IN
Standard
CSA,E2186,UL
Strip Length
16.878 mm
Temperature Rating
90 degrees C
Type
ALNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669690521
Color
Silver
Product UPC
78366969052
Weight
0.007 lb

Dimensions

Height
0.33 Inch
Inside Diameter
0.155 in
Length
1.672 Inch
Outside Diameter
0.3 in
Width
0.435 in
