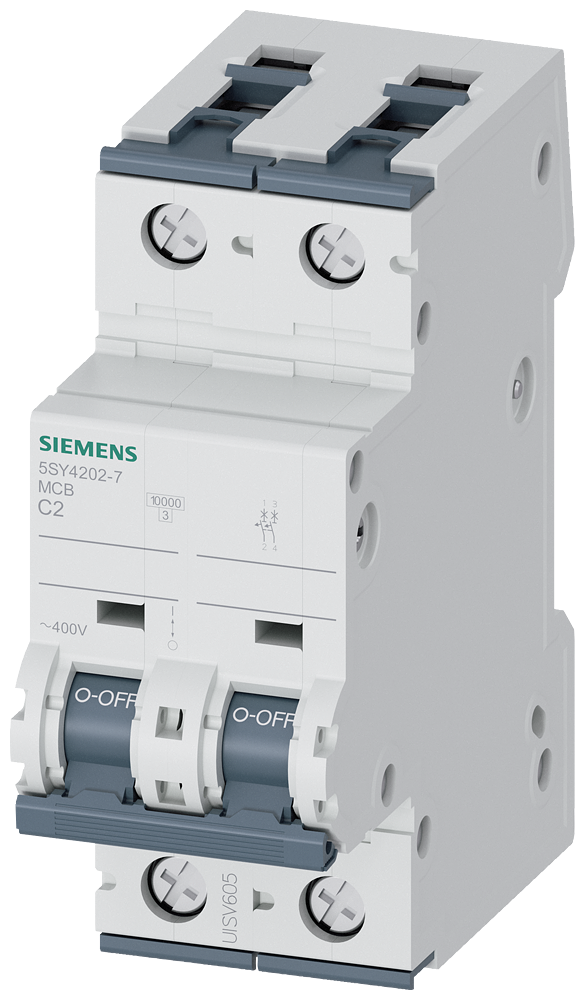

Siemens 5SY4202-7 5SY4 MCB, 2P,4

Manufacturer: Siemens | Catalog # 5SY4202-7 | QED Part # 4455725
$130.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SUPPLEMENTARY PROTECTOR,2P,2A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 2 Amps, 480 VAC, Trip Characteristic Curve C, 36mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
2 Amp
Applications
SUPPLEMENTARY PROTECTION
Current
2 AMP
Interrupt Rating
5 kAIC
Material
Thermoplastic
Number of Poles
2 Pole
Response Time
N/A
Size
N/A
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554862330
Class
C
Product UPC
75455486233
Weight
0.710 lb

Dimensions

Height
4.3 Inch
Length
19.3 Inch
Width
5.550 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.029 kg
Green End-of-Life CO2
0.336 kg
Green Manufacturing CO2
1.168 kg
Green Total CO2
17.024 kg
Green Transport-to-DC CO2
0.245 kg
Green Use-Phase CO2
15.246 kg
