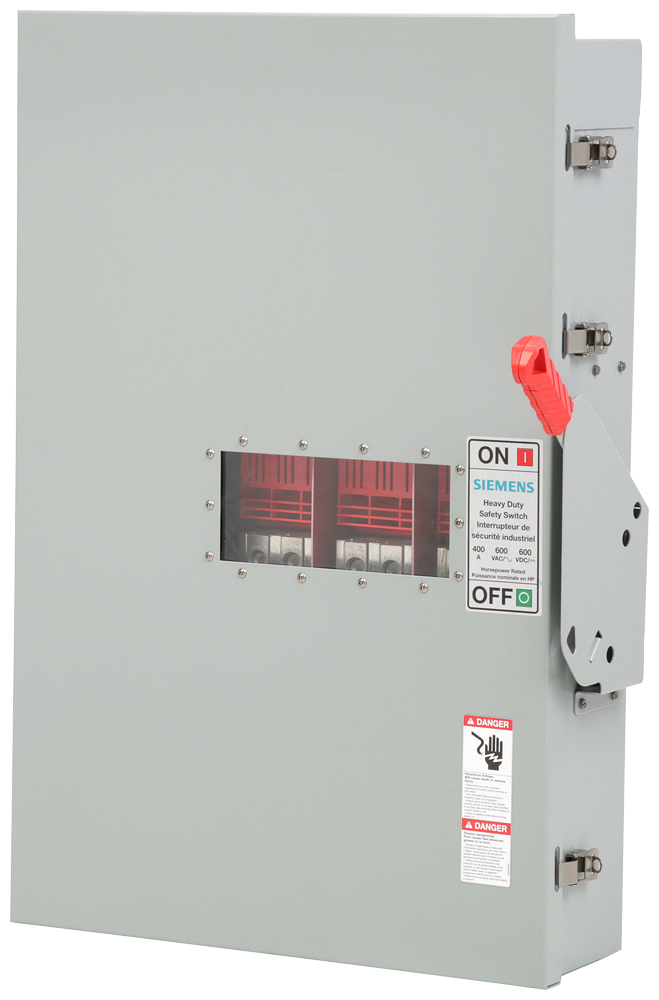

Siemens HNF365JWA 400A 3P 600V N

Manufacturer: Siemens | Catalog # HNF365JWA | QED Part # 4453522
$4,072.25 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
CUL Heavy Duty Safety Switch, Non-Fusible, 3 Poles, 600V, 400A, Type 12, Viewing Window

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
400 Amp
Applications
For Circuit Protection, Industrial use
Connection Type
MECHANICAL LUGS
Enclosure
NEMA12
Material
Steel
Mounting Type
2 or 3 Point Hole
NEMA Rating
NEMA 12
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Cycles
10000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Non-Fused, Single Throw, Insulated
Voltage
600 Volt
Wattage
6 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
887621872854
Housing Material
304 Stainless Steel
Product UPC
88762187285
Weight
99.803 lb

Dimensions

Height
45.32 Inch
Length
6.97 Inch
Width
22.400 in

Certifications and Compliance

Country of Origin
Mexico
