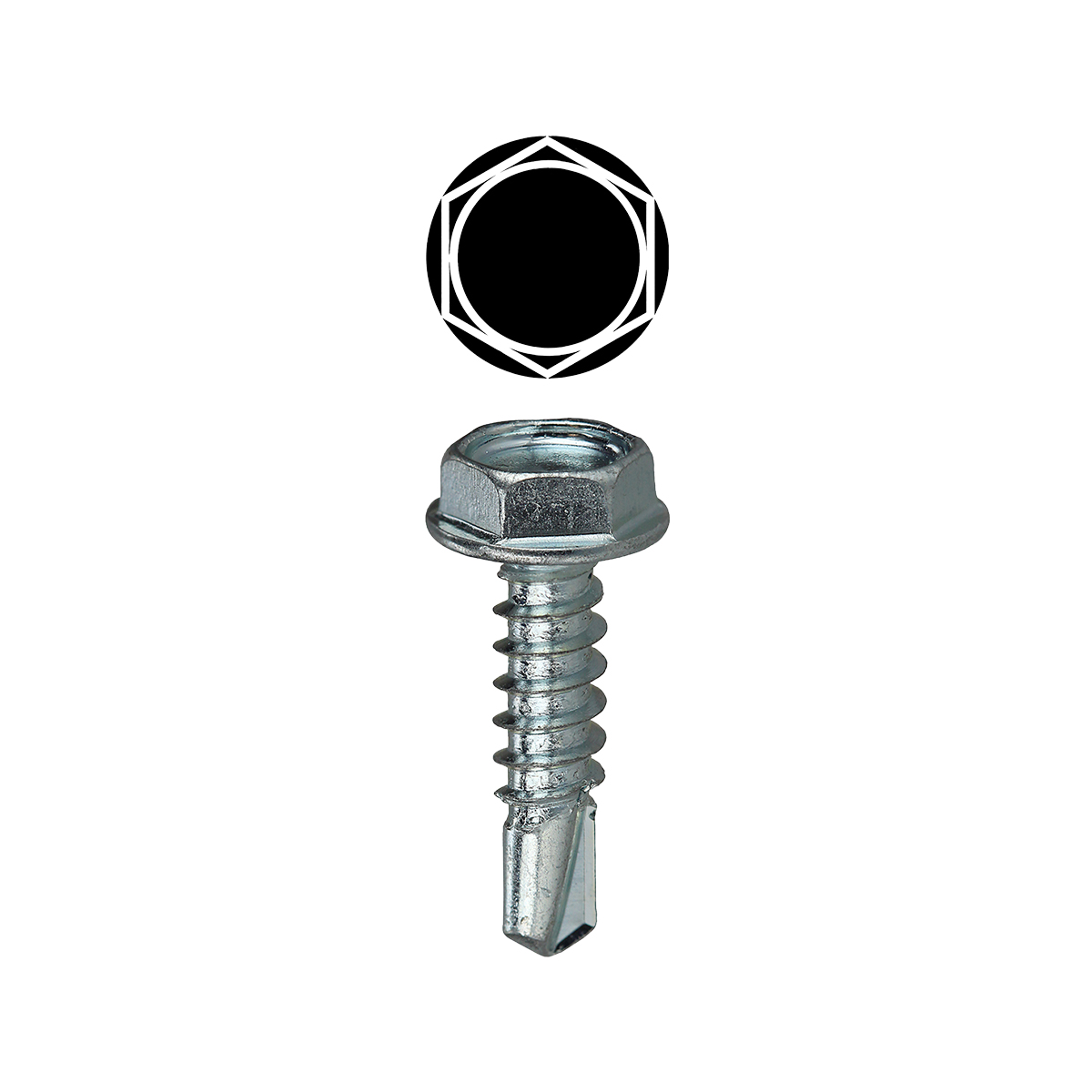

LH Dottie TEKHT1034 #10 x 3/4 Inch Zinc Plated Steel Hex Washer Head Self Drilling Screw

Manufacturer: L.H. Dottie Company | Catalog # TEKHT1034 | QED Part # 4452065
$32.42 /c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Centennial opens monday 6:00am mt
Check another branch
Buy American Compliant Buy American Compliant Primary Spec Sheet
Self-Drilling Screws are manufactured from cold-heading steel and feature a #2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.

Technical Information

Drive Type
Hex
Head Type
Hex Washer
Material
Steel
Size
3/4 in
Style
Hexagonal Washer Head
Thread Type
BSD
Type
Self Drilling Screw

Manufacturer Information

Brand
L.H. Dottie

General Product Info

12-Digit UPC
781002178088
Finish
Zinc
Product UPC
78100217808
UNSPSC
31161528
Weight
0.6000 lb

Dimensions

Diameter
110 Inch
Head Diameter
0.384 in
Hex Size
5/16 in
Length
3/4 Inch

Certifications and Compliance

Buy American Compliant
Y
Special Features
  • Drill
  • Taps and Fastens in One Operation
Applications
  • Metal to Metal
Certifications
  • IFI-113
