JNO R510-BL 50W STEP CYLINDER BLACK

Manufacturer: Juno Lighting | Catalog # R510BL | QED Part # 4428160
$26.13 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet

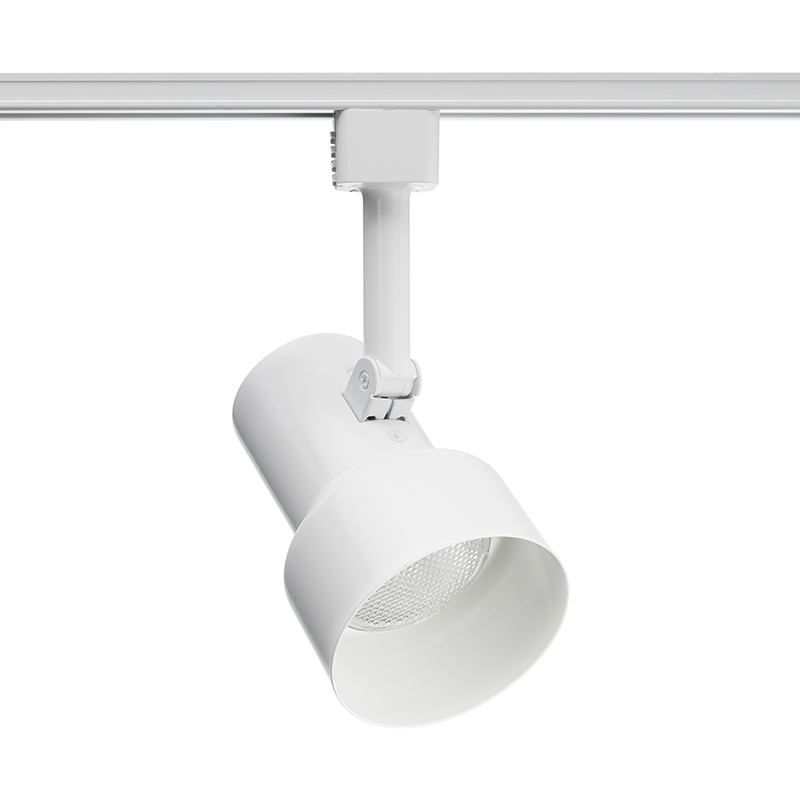

One of the original trac lampholder designs, the step cylinder is still popular for more utilitarian applications. The spotlight accepts a range of R, BR, and PAR lamps and provides deep lamp shielding. Includes a 50-watt maximum R20 or PAR20 lamp.

Technical Information

Applications
Trac Lighting
Bulb Included
No
Lamp Type
Incandescent
Lamp Wattage
50 WTT
Number of Lamps
1
Style
Commercial
Voltage
120 Volt
Wattage
50 Watt

Manufacturer Information

Brand
Juno Lighting
Sub Brand
Juno

General Product Info

12-Digit UPC
661209030474
Collection
Trac-Lites Step Cylinders
Color
Black
Finish
Black
Fixture Type
Incandescent Line Voltage
Product UPC
66120903047
Weight
0.82 Pound

Dimensions

Depth
5 Inch
Height
4 Inch
Width
3-1/2 Inch
Compatible Systems
  • Trac-Master 120V Tube System
  • Trac-Master 120V Recessed System
  • Trac-Master 120V One Circuit System
  • Trac-Master 120V Two Circuit System
  • Trac-Lites One Circuit System
Description
  • UL, cUL Listed
  • Spring-loaded locking latch with embossed polarity arrows secures trac light to trac
  • Includes an on-off switch; true, positive electrical ground; and medium base porcelain socket with nickel-plated copper screw shell
  • 90-degree vertical aiming capability and 358-degree rotation
  • Copper alloy contacts provide precise spring action
  • Patented embossed polarity arrows on bottom of adapter
