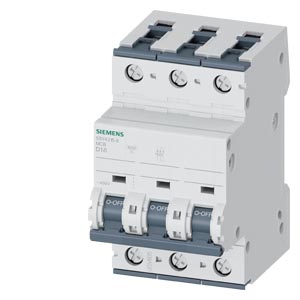

SIE 5SY4315-8 SUP PTOR 5SY4 3P 480V

Manufacturer: Siemens | Catalog # 5SY4315-8 | QED Part # 4418137
$208.12 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SUPPLEMENTARY PROTECTOR,3P,1.6A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 1.6 Amps, 480 VAC, Trip Characteristic Curve D, 54mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
1.6 Amp
Applications
Circuit Protection
Material
Thermoplastic
Number of Poles
3 Pole
Type
Supplementary Protectors
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SIEMENS

General Product Info

12-Digit UPC
754554876450
Product UPC
75455487645
Weight
1.045 lb

Dimensions

Height
3.27 Inch
Length
3.66 Inch
Width
0.830 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.041 kg
Green End-of-Life CO2
0.505 kg
Green Manufacturing CO2
1.613 kg
Green Total CO2
21.585 kg
Green Transport-to-DC CO2
0.368 kg
Green Use-Phase CO2
19.058 kg
