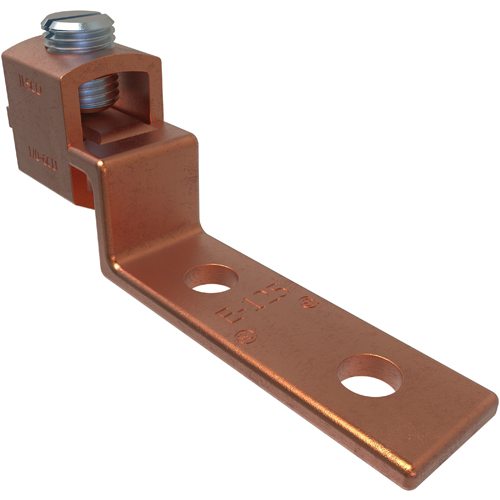

Product image for Ilsco E-125 Copper Mechanical Lug Offset, Conductor Range 1/0-6, 1 Port, 2 Holes, 1/4in Bolt Size, 1in Hole Spacing, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco E-125 Copper Mechanical Lug Offset, Conductor Range 1/0-6, 1 Port, 2 Holes, 1/4in Bolt Size, 1in Hole Spacing, UL, CSA

Manufacturer: Ilsco | Catalog # E-125 | QED Part # 4387447
$25.64 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Copper Mechanical Lug Offset, Conductor Range 1/0-6, 1 Port, 2 Holes, 1/4in Bolt Size, 1in Hole Spacing, UL, CSA

Technical Information

Applications
Mechanical Lug, One Conductor
Material
Copper
Number of Conductors
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
E:2 HOLE OFFSET
Voltage
35,000 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669242522
Color
Copper
Product UPC
78366924252

Certifications and Compliance

Country of Origin
India
