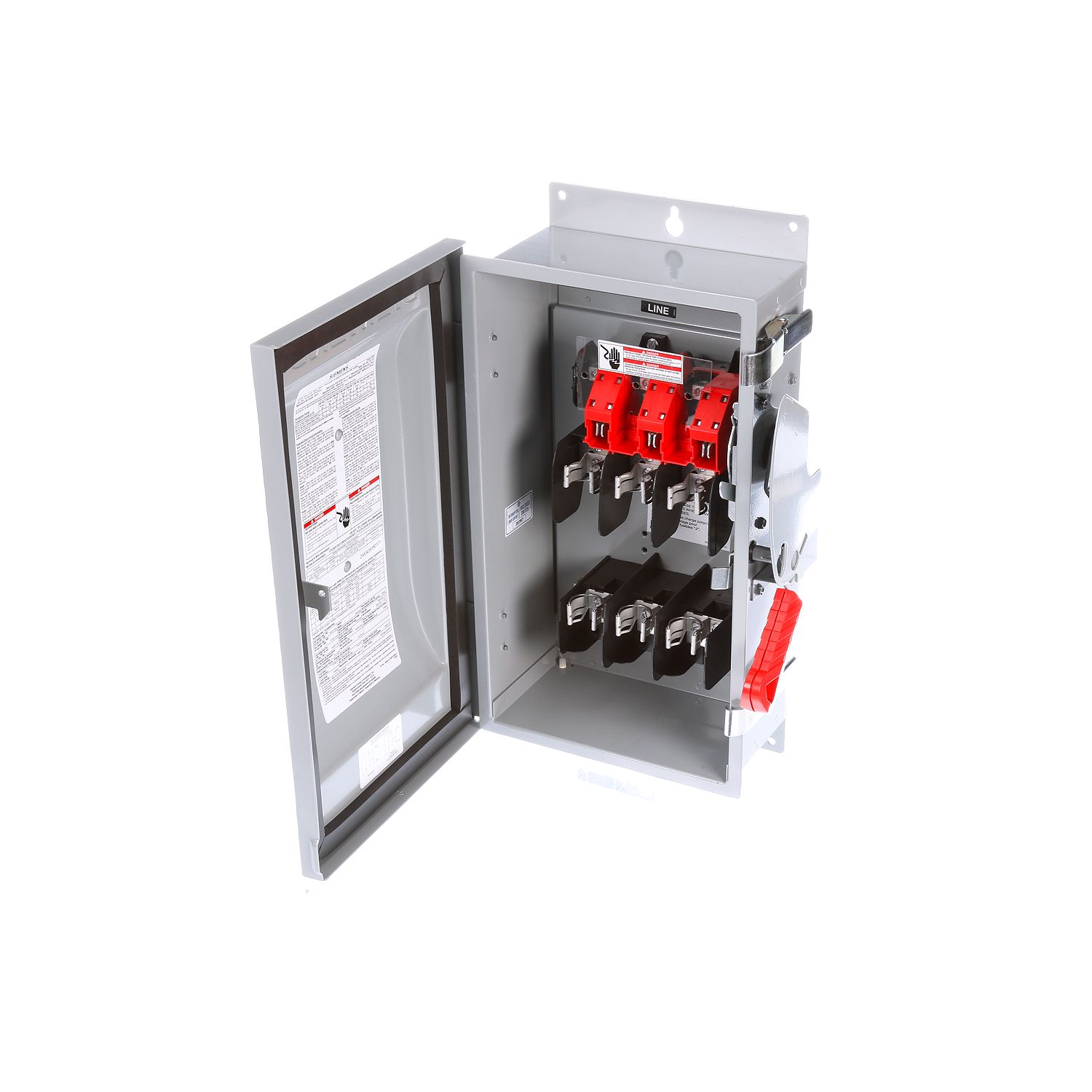

Product image for Siemens HF364J 480/600 VAC 250/600 VDC 200 Amp 3-Pole 3-Wire NEMA 12 Heavy Duty Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

Siemens HF364J 480/600 VAC 250/600 VDC 200 Amp 3-Pole 3-Wire NEMA 12 Heavy Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # HF364J | QED Part # 437166
$2,029.13 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Centennial Closes 4:00PM MT
Check another branch
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Fuse Fused in a type 12 industrial enclosure. Rated 600VAC (200A).

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
200 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA12
Frequency
60 Hz
Insulated?
Yes
Material
Steel
Mounting Type
SURFACE
Number of Poles
3 Pole
Operating Cycles
8000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
Heavy Duty, Enclosed, Fused, Single Throw, Toggle
Voltage
600 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643151840
Product UPC
78364315184
Weight
48.400 lb

Dimensions

Height
9.6 Inch
Length
35 Inch
Width
20.700 in

Certifications and Compliance

Country of Origin
Mexico
