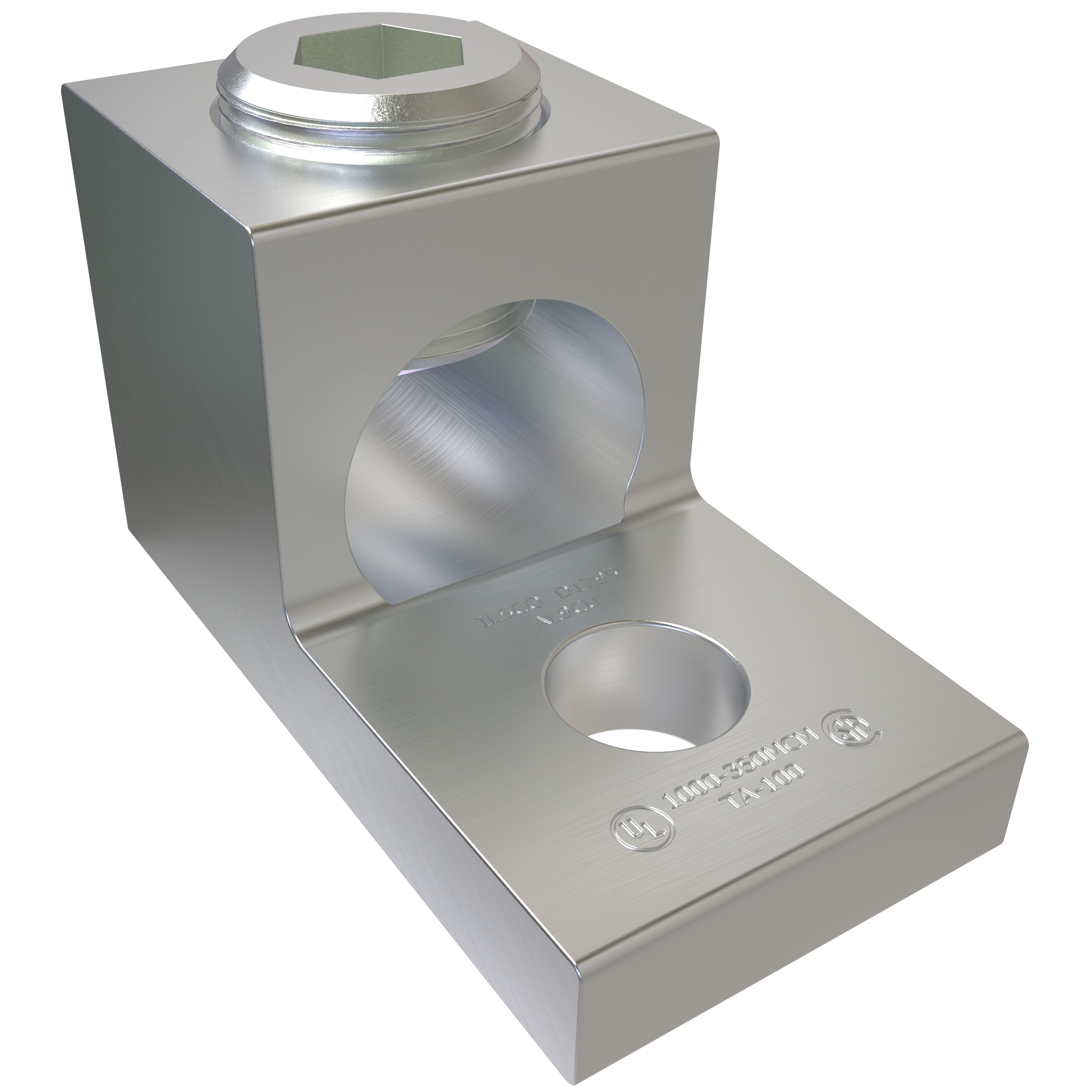

Product image for Ilsco TA-1000 Aluminum Mechanical Lug, Conductor Range 1000-350, 1 Port, 1 Hole, 5/8in Bolt Size, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco TA-1000 Aluminum Mechanical Lug, Conductor Range 1000-350, 1 Port, 1 Hole, 5/8in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # TA-1000 | QED Part # 4370283
$36.69 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 5/8 in, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1000 kcmil - 350 kcmil, 1 conductors, 1 ports/wireways, Drive Type Main 9/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, One Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.656 in
Number of Conductors
1
Number of Holes
1 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TA:1 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669895582
Color
Silver
Finish
Tin Plated
Product UPC
78366989558
Weight
0.501 lb

Dimensions

Height
1.938 Inch
Length
3-3/8 Inch
Width
1.75 in
