Siemens WB3800CU PMOD WB 3PH 800A 100K

Manufacturer: Siemens | Catalog # WB3800CU | QED Part # 4347589
$9,990.20 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Brochure

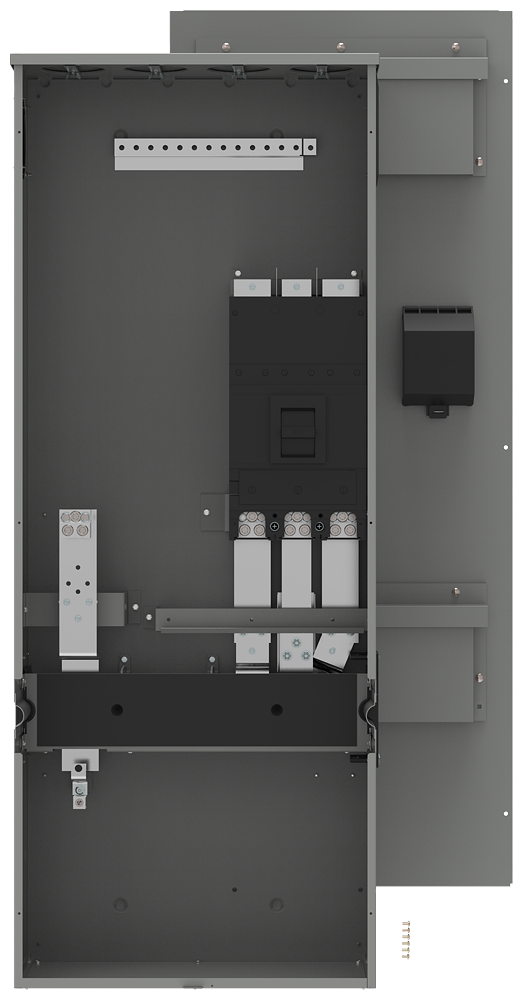

SIEMENS LOW VOLTAGE POWER MOD WB STANDARD CIRCUIT BREAKER MAIN. 3-PHASE 4-WIRE SYSTEM RATED 240V (800A) 100KAIC INTERRUPT. SPECIAL FEATURES: NEMA TYPE 3R ENCLOSURE, OH/UG SERVICE FEED. 800A 3-POLE MXD6 FRAME BREAKER INCLUDED (HMXD63B800). FACTORY INSTALLED LUGS.

Technical Information

Amperage
800 Amp
Applications
MAINDISCONNECTFORMODULARMETERING
Connection Type
Plug-In
Enclosure
NEMA3R
Interrupt Rating
10 AIC
Mounting Type
SURFACE / SIEMENS QuickRoll
Number of Phases
3 Phase
Number of Poles
3 Pole
Tc Connection
MECHANICALLUGS/SIEMENSQuickConnect
Trip Range
Thermal Magnetic
Type
800AMXD6FRAMEBREAKER(HMXD63B800)INSTALLED
Voltage
240 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
POWERMOD

General Product Info

12-Digit UPC
040892150360
Product UPC
04089215036
Weight
272.300 lb

Dimensions

Height
61.19 Inch
Length
24.19 Inch
Width
3

Certifications and Compliance

Country of Origin
USA
