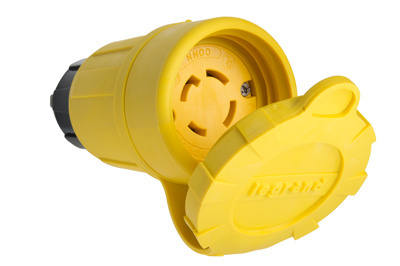

Image thumbnail 3
To:
CC:

Pass & Seymour 29W76 30A 3P4W 480V Watertight Locking Connector, NEMA 4X/6P IP67 (L16-30R)

Manufacturer: Legrand Pass & Seymour | Catalog # 29W76 | QED Part # 4343916
$193.95 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Brochure Installation / Instruction Manual
Locking Watertight Connector, 30amp 3 480volt, NEMA Configuration L16-30, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Technical Information

Amperage
30 Amp
Applications
Industrial
Conductor Size
12-6 AWG
Cord Type
12/4 S to 8/4 S, 6/4 MSHA, .640" min to .930" max
Indoor Outdoor
Indoor,Outdoor
Material
Rubber
NEMA
L16-30R
NEMA Rating
L16-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Type
Connector
Voltage
480 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007033007
Color
Yellow
Environmental Conditions
-40 to 60 C
Product UPC
78500703300
UNSPSC
39121403

Dimensions

Diameter
2.76 Inch
Length
4-3/4 Inch
Warranty Length
1 yr
Width
2.35 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.
