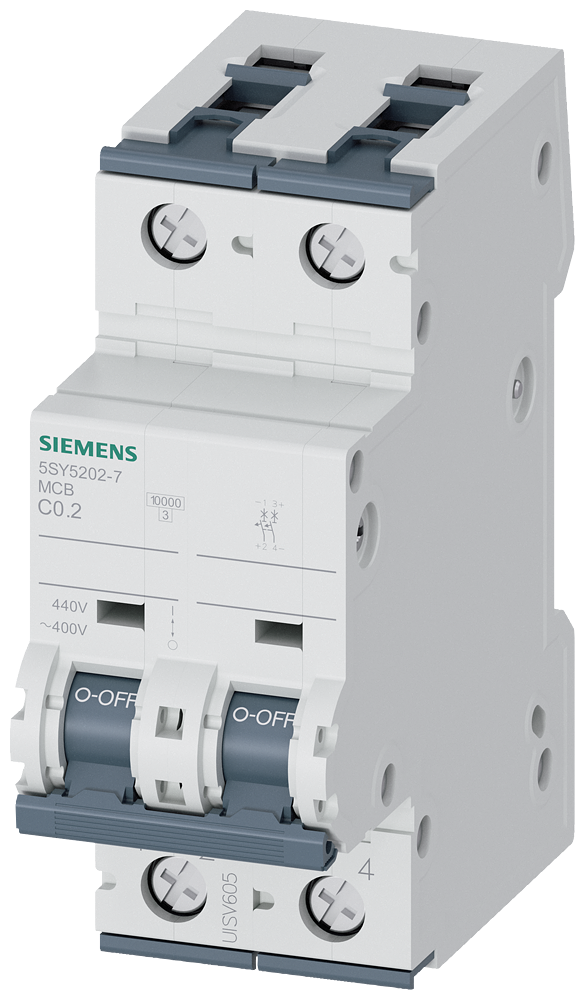

Product image for Siemens 5SY52027 5SY5 MCB, 2P,40
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens 5SY52027 5SY5 MCB, 2P,40

Manufacturer: Siemens | Catalog # 5SY5202-7 | QED Part # 4343225
$400.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SUPPLEMENTARY PROTECTOR,2P,2A,CURVE C Supplementary Protector, IEC Mini Circuit Breaker, 2 Pole, 2 Amps, 440 VDC, Trip Characteristic Curve C, 36mm Width, 70mm Depth, Not UL

Technical Information

Amperage
2 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Frame Clamp
Current
2 AMP
Frequency
50 Hz
Interrupt Rating
10 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Short Circuit Current
10 kA
Standard
IEC/EN 60898-2,IEC/EN 60947-2
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
195125312043
Class
C
Product UPC
19512531204
Weight
0.720 lb

Dimensions

Height
3-1/4 Inch
Length
2 Inch
Width
4.000 in

Certifications and Compliance

Country of Origin
Germany
