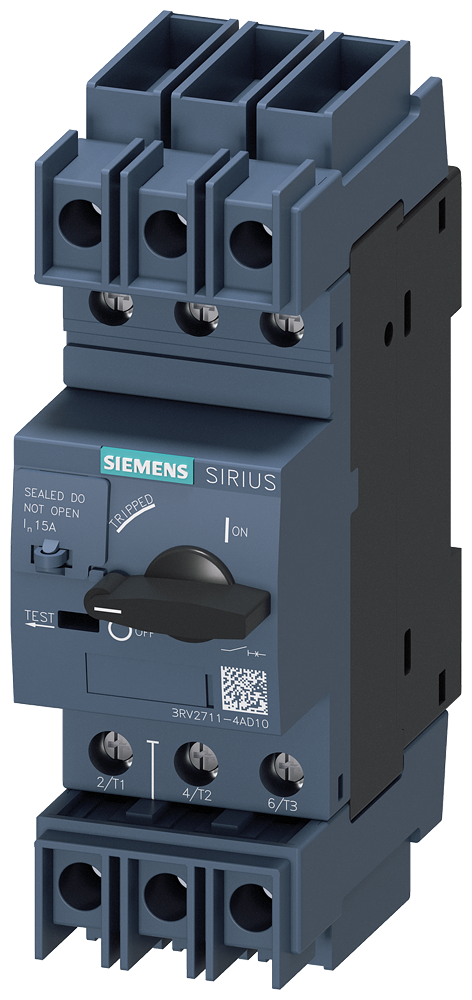

Product image for Siemens 3RV27114AD10 TMCB UL489 S00 15A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

Siemens 3RV27114AD10 TMCB UL489 S00 15A

Manufacturer: Siemens | Catalog # 3RV27114AD10 | QED Part # 4329013
$710.49 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Circuit-breaker sz s00, for plant protection, with approbation circuit-breaker ul 489. csa c22.2 no.5-02. a-release 15 a, n-release 208 a, screw connection, standard sw. capacity

Technical Information

Actuator
2 Position Selector Switch
Applications
For system protection
Connection Type
Screw Connection
Number of Poles
3 Pole
Operating Temperature
60 - (-20) degrees C
Tc Connection
screw-type terminals
Type
3RV2 circuit breaker
Voltage
690 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SIRIUS

General Product Info

12-Digit UPC
662643922851
Environmental Conditions
80 to 50 C
Product UPC
66264392285
Weight
1.030 lb

Dimensions

Depth
97 mm
Height
144 mm
Length
97 mm
Width
45 mm

Certifications and Compliance

Country of Origin
Germany
