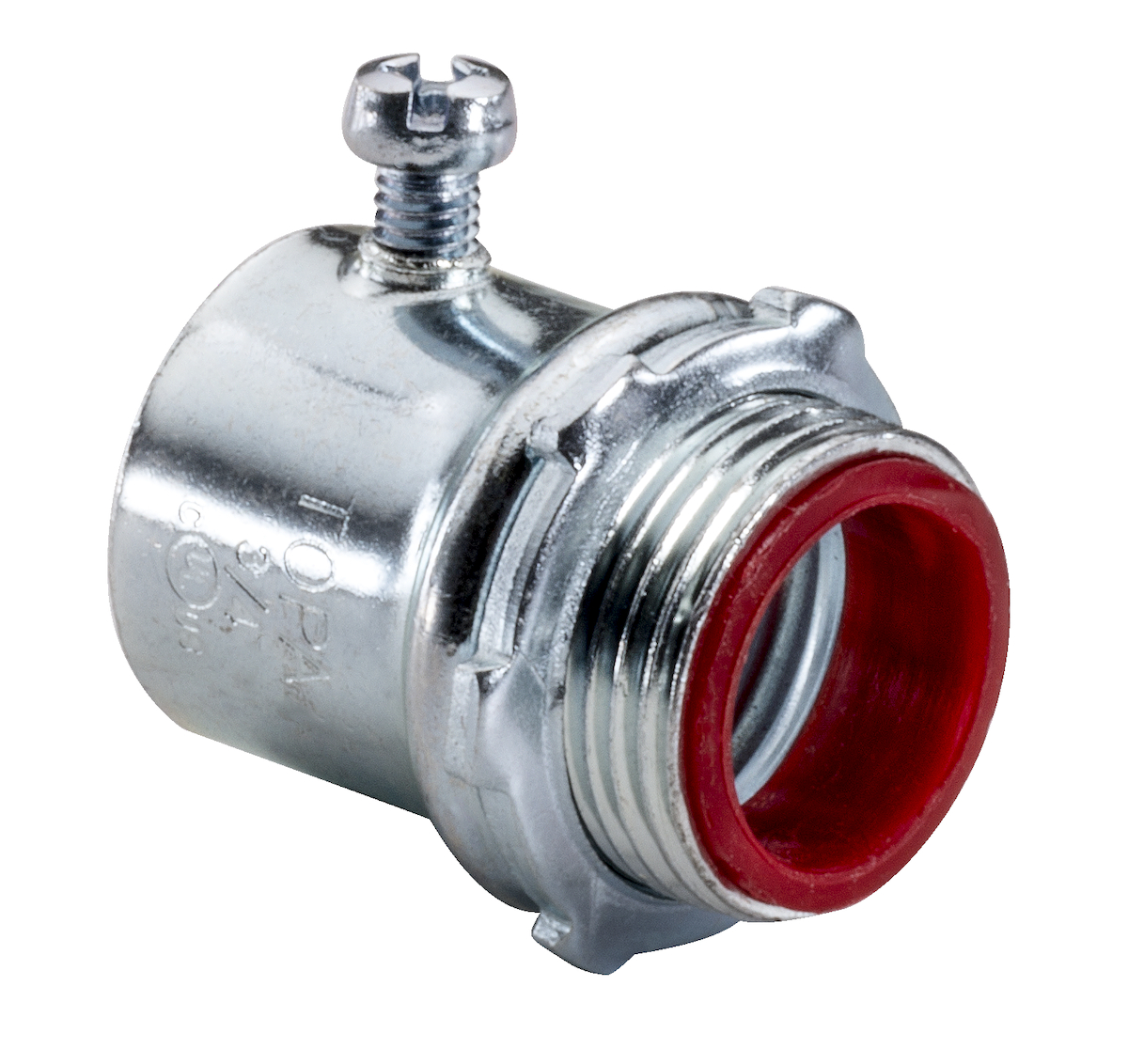

Product image for Topaz Corp 631SI 1/2 Inch Zinc Plated Steel Set Screw Type Insulated Throat EMT Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Topaz Corp 631SI 1/2 Inch Zinc Plated Steel Set Screw Type Insulated Throat EMT Connector

Manufacturer: Topaz Electrical Fittings | Catalog # 631SI | QED Part # 4328475
$0.40 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 23 to 37 days
Primary Spec Sheet
Topaz EMT connectors with set screw type assembly provide secure concrete tight protection when taped. Insulated throat models offer superior protection against abrasion. Available in sizes from 1/2” to 4”. Applications include use in dry locations to bond EMT thin wall conduit to electrical boxes or enclosures. Model sizes 2-1/2” to 4” are suitable for both EMT and rigid conduit. Assemblies include steel locknut; constructed of strong and long lasting steel with zinc plated finish; UL listed. NEMA/ANSI FB-1 compliant.

Technical Information

Material
Steel
Size
1/2 in
Tc Connection
Threaded x Set Screw
Thread Length
0.406 IN
Trade Size
1/2 Inch
Type
Set Screw EMT Connector

Manufacturer Information

Brand
Topaz Lighting and Electric

General Product Info

12-Digit UPC
751338231009
Finish
Zinc
Product UPC
75133823100
Used With
Join EMT To Box or Enclosure

Dimensions

Diameter
1.063 Inch
Length
1.469 Inch

Certifications and Compliance

Country of Origin
China
Features
  • EMT CONNECTORS
  • STEEL-ZINC PLATED
  • CONCRETE TIGHT WHEN TAPED
  • SET SCREW TYPE WITH INSULATED THROAT
