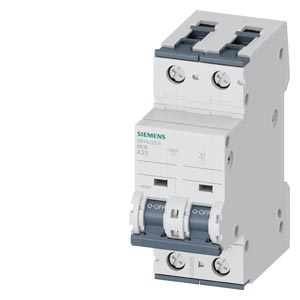

Product image for Siemens 5SY4225-5 SUP PTOR 5SY4 2P 480V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens 5SY4225-5 SUP PTOR 5SY4 2P 480V

Manufacturer: Siemens | Catalog # 5SY4225-5 | QED Part # 4319559
$130.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SUPPLEMENTARY PROTECTOR,2P,25A,CURVE A Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 25 Amps, 480 VAC, Trip Characteristic Curve A, 36mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
25 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Short Circuit Current
5 kA
Standard
CSA C22.2 No. 235,EN 60898-1,EN 60947-2,IEC,UL 1077
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554875705
Class
A
Product UPC
75455487570
Weight
0.703 lb

Dimensions

Height
3.31 Inch
Length
3.622 Inch
Width
1.575 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.03 kg
Green End-of-Life CO2
0.346 kg
Green Manufacturing CO2
1.205 kg
Green Total CO2
43.761 kg
Green Transport-to-DC CO2
0.253 kg
Green Use-Phase CO2
41.927 kg
