SLIDE EFL SP/3W 2W PRESET 16ALA

Manufacturer: Legrand Pass & Seymour | Catalog # CDFB163PLA | QED Part # 4317173
$477.24 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual

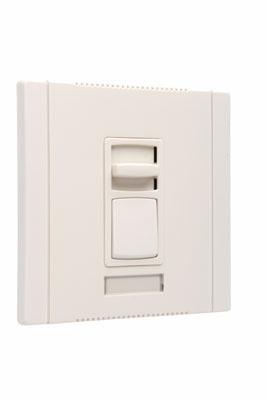

Slide Dimmer, Electronic Single Pole/3Way 2Wire PRESET 16A, Light Almond

Technical Information

Actuator
Slide
Amperage
16 Amp
Applications
Commercial
Enclosure
Thermoplastic
Frequency
60 Hz
Material
Thermoplastic
Number of Poles
3 Pole
Number of Wires
2 Wire
Operating Cycles
100.0
Operating Temperature
Ambient: Between 0 to 40C Deg
Size
Wide
Style
Wide
Type
Fluorescent
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007303247
Color
Light Almond
Environmental Conditions
0 to 95 PCT
Product Series
Titan
Product UPC
78500730324

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Eco-Benefit Information
  • RoHS Compliant
  • LEED Contribution: Yes
Features
  • For use with 2 wire 120V and 277V fluorescent dimming ballasts.
  • Field configurable wall plate system.
  • Labeling system.
  • Adjustable low end output voltage.
  • Shipped with protective film.
  • Rugged construction.
  • Superior ratings with a minimum of derating when ganged.
  • Simple to plan the rough-in.
  • Available in single pole slide-to-OFF and single pole/3-way preset models.
  • Attractive European styling.
  • Eye-catching packaging.
  • Exclusive adaptor kit to install other Decorator opening devices under the Titan™ wall plate system. (See Page N-29.)
  • Blank center plate included.
  • For covering patents, see www.legrand.us/patents.
