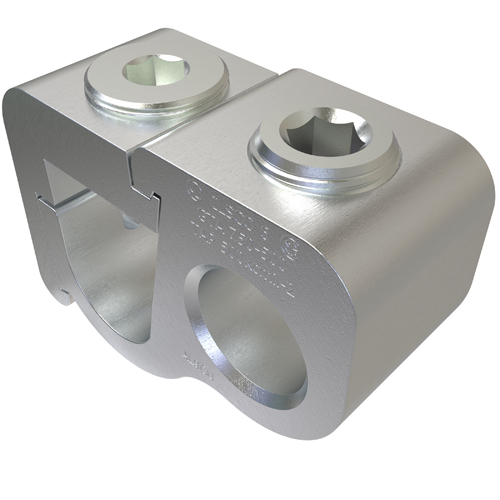

Ilsco GTA-750-500 Aluminum Parallel Tap Connector, Dual Rated, Main Conductor Range 750-500, Tap Range 500-2, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # GTA-750-500 | QED Part # 4312623
$277.92 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Parallel Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 500 kcmil, Copper/Aluminum Secondary Conductor 500 kcmil - 2 Str, 2 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/8 Internal Hex, rated for 600 V, primary color Silver, 1 poles,

Technical Information

Applications
For Tap Connector
Conductor Size
500-750 kcmil
Material
Aluminum
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Lay-In
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669342550
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366934255
Used With
Copper and Aluminum Conductor

Dimensions

Height
2.437 in
Length
3.375 in
Width
1.312 in
