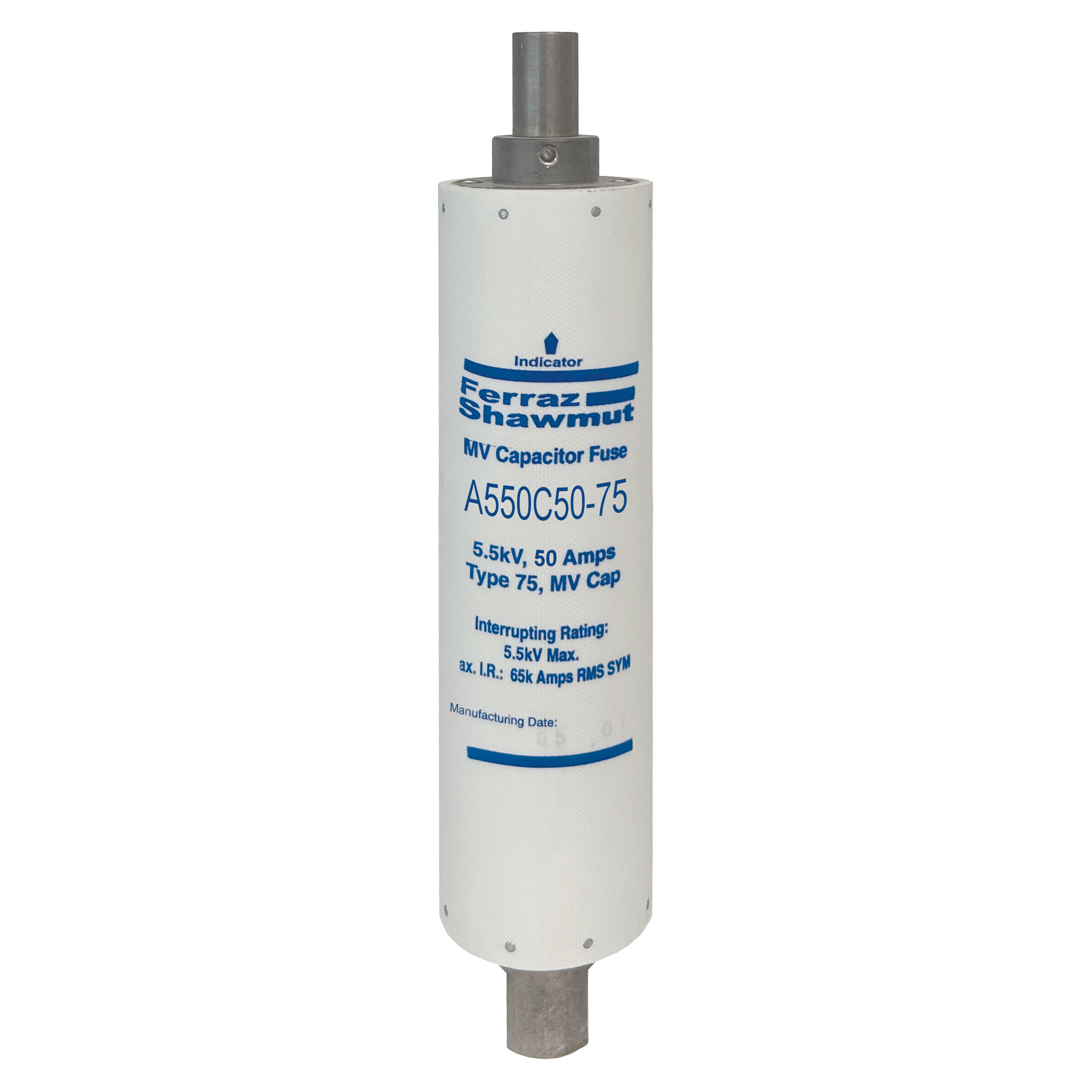

Product image for Mersen A550C50-75 5.5KV, 50 AMPS, T
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Mersen A550C50-75 5.5KV, 50 AMPS, T

Manufacturer: Mersen | Catalog # A550C50-75 | QED Part # 4285779
$1,074.97 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Mersen capacitor fuses are designed to ANSI C37-41. They are currentlimiting operating without noise or discharge and are designed to be used indoors in a general purpose enclosure or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the use of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor. The various mounting configurations offer manufacturers a wide range of cost/space saving solutions and a large choice of equivalent products

Technical Information

Amperage
50 Amp
Applications
Protection of capacitors Power Factor Correction Equipment Harmonic Filtering Equipment Induction Heating System High Power Drive Welder
Connection Type
Female Stud To Female Tube
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Direct Mount
Rated Voltage AC
5500 V
Tc Connection
F Stud To F Tube
Terminal Material
Tin-Plated Brass
Terminal Type
Female Stud To Female Tube
Type
Capacitor Protection Fuses
Voltage
5500 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001355104
Product UPC
78200135510
Weight
2.5 lb

Dimensions

Diameter
2 Inch
Length
9-3/4 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • High interrupting capacity
  • Current limitation
  • Blown-fuse indication
  • Direct mount
  • Clip style mount
  • Bus mount
  • Non-venting for silent operation
Certifications
  • ANSI C37-41
