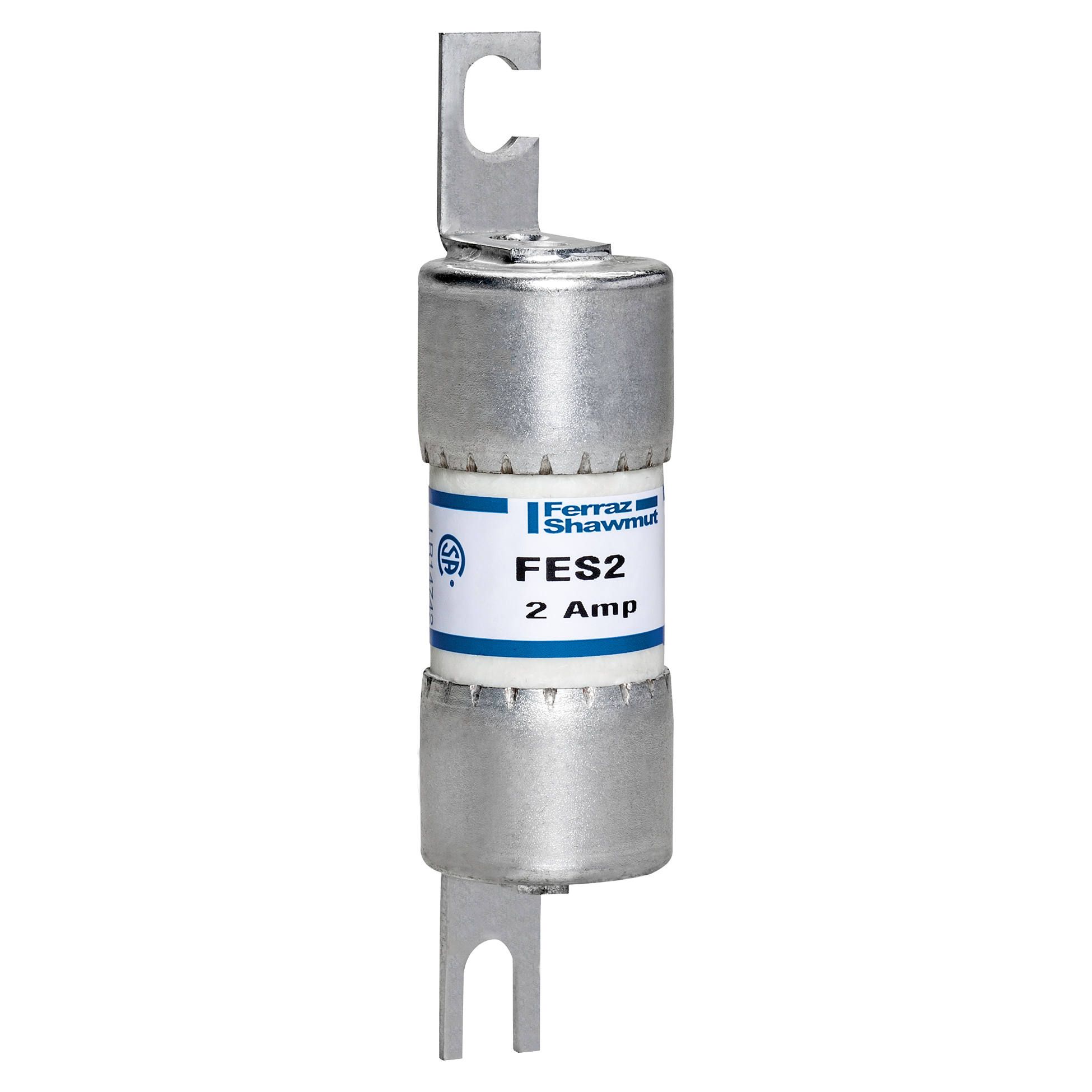

Mersen FES2 FUSECLASS C FORM II

Manufacturer: Mersen | Catalog # FES2 | QED Part # 4256096
$105.01 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.

Technical Information

Amperage
2 Amp
Applications
For Short Circuit and Back-Up Protection of Motor Controllers and Components
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class C
Insulation Material
PolyTube
Interrupt Rating
200 kAIC
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
460 V
Terminal Material
Copper
Terminal Type
Blade
Type
Canadian
Voltage
600 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
068938904104
Class
C
Product UPC
06893890410
Weight
0.108 lb

Dimensions

Diameter
0.81 Inch
Length
3.31 Inch
Features
  • BS88 dimensions
  • Fast-acting
Applications
  • Short circuit and back-up protection of motor controllers and components
Approvals & Standards
  • CSA Certified HRCII-MISC
  • IEC 269-2-1
