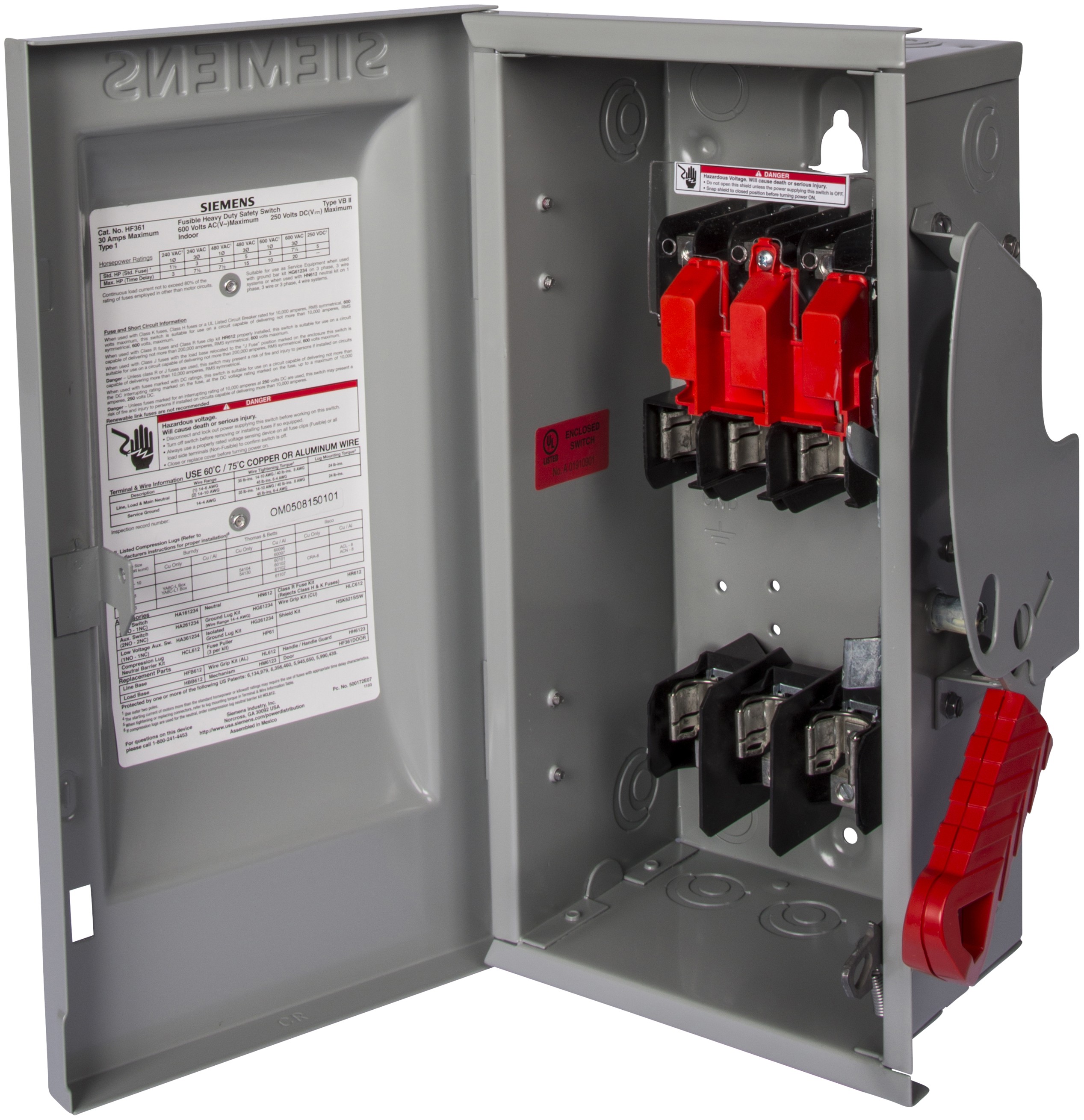

Product image for Siemens HF363S 480/600 VAC 250/600 VDC 100 Amp 3-Pole 3-Wire NEMA 4/4X Heavy Duty Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens HF363S 480/600 VAC 250/600 VDC 100 Amp 3-Pole 3-Wire NEMA 4/4X Heavy Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # HF363S | QED Part # 423667
$4,486.12 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Heavy Duty Safety Switch, Fusible, 3 Poles, 600V, 100A, Type 4X

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
100 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA4X
Frequency
60 Hz
Insulated?
Yes
Material
Stainless Steel
Mounting Type
SURFACE
Number of Poles
3 Pole
Operating Cycles
10000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
Heavy Duty, Enclosed, Fused, Single Throw, Toggle
Voltage
600 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643151994
Product UPC
78364315199
Weight
28.400 lb

Dimensions

Height
8.3 Inch
Length
28 Inch
Width
14.600 in

Certifications and Compliance

Country of Origin
Mexico
