Ilsco 2IACL-750 SureCrimp® Aluminum Compression Lug, Dual Rated, Conductor Size 750, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, No Sight Window, Narrow Tang, Tin Plated, UL, CSA | Quality Electrical Distribution (QED)

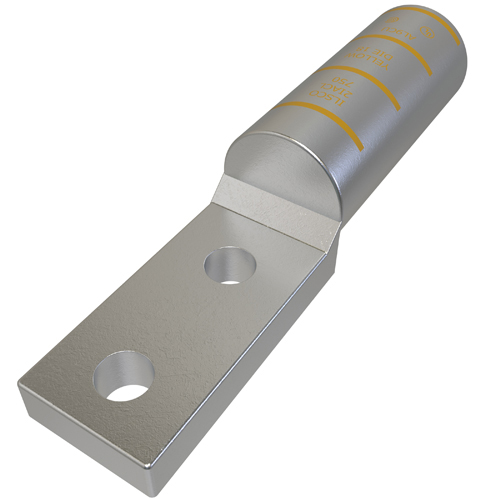

Product image for Ilsco 2IACL-750 SureCrimp® Aluminum Compression Lug, Dual Rated, Conductor Size 750, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, No Sight Window, Narrow Tang, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco 2IACL-750 SureCrimp® Aluminum Compression Lug, Dual Rated, Conductor Size 750, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, No Sight Window, Narrow Tang, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # 2IACL-750 | QED Part # 4236140
$304.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Conductor Size 750, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, No Sight Window, Narrow Tang, Tin Plated, UL, CSA

Technical Information

Applications
Aluminum Compression Lug
Bolt Size
1/2 IN
Conductor Type
Stranded
Size
L:7.204;W:1.6;H:1.662 IN
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
IACL:1&2 HOLE NARROW
Voltage
35,000 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669929485
Color
Silver
Product UPC
78366992948
