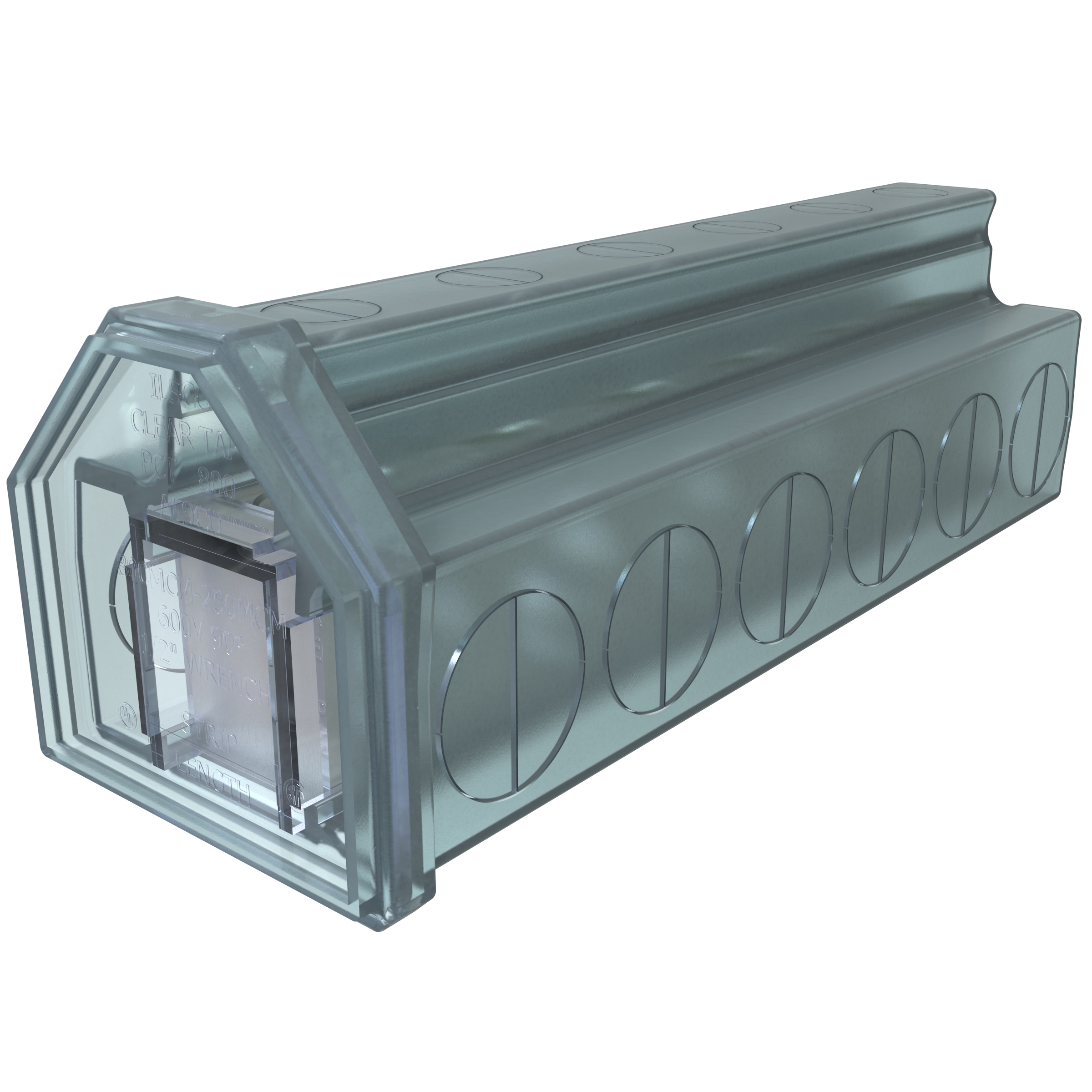

Product image for Ilsco PCT-6-800 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 850-250, 6 Ports, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco PCT-6-800 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 850-250, 6 Ports, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PCT-6-800 | QED Part # 423507
$470.51 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 800 kcmil - 250 kcmil, Contains DE-OX®, 6 conductors, 6 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Clear, 1 poles,

Technical Information

Amperage
CU:555
Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Size
250-800 kcmil
Conductor Type
Aluminum/Copper
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
6
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
PCT, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearTap®

General Product Info

12-Digit UPC
783669700763
Color
Clear
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366970076
Weight
2.837 lb

Dimensions

Height
3.389 Inch
Length
10.038 Inch
Width
3.428 in
