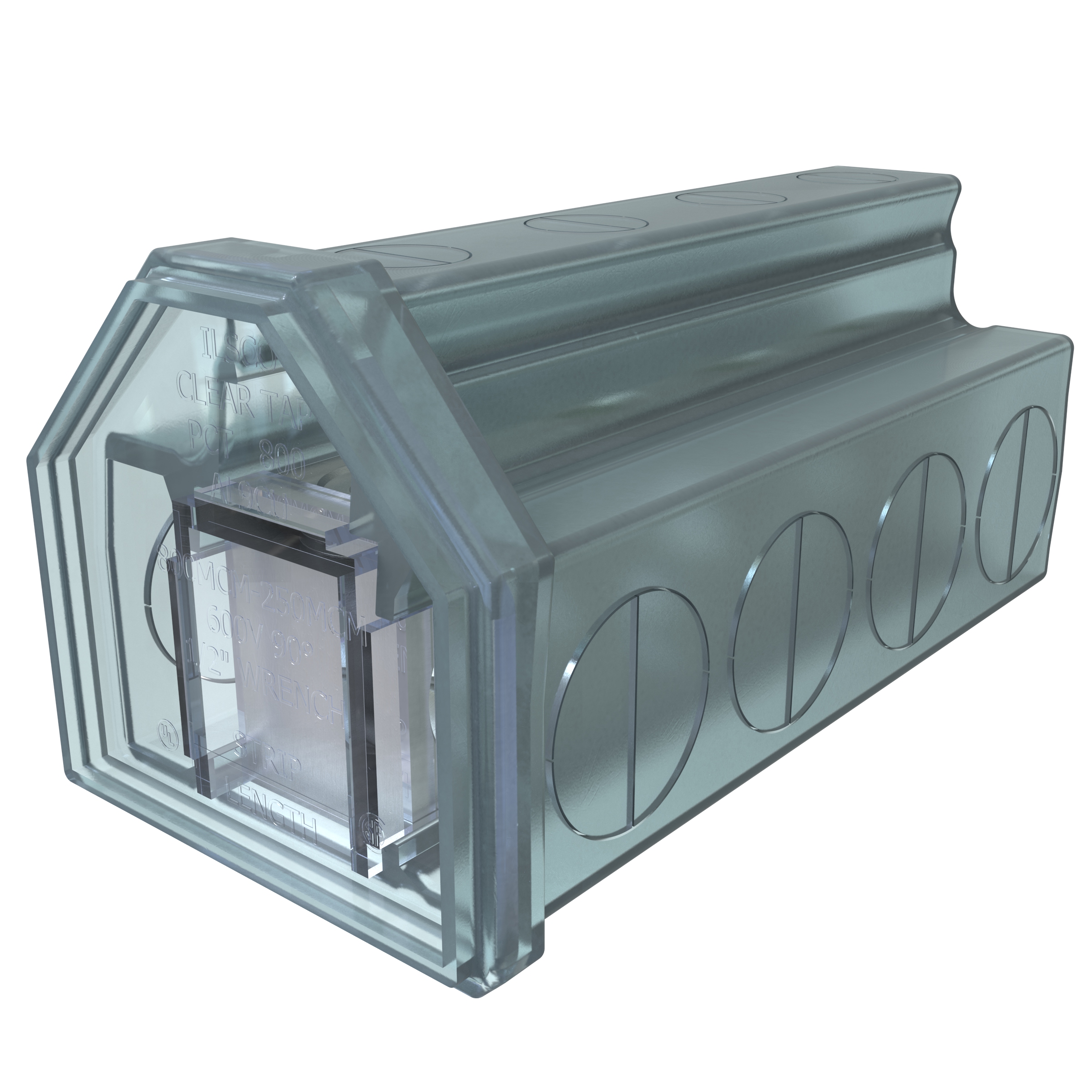

Ilsco PCT-4-800 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 850-250, 4 Ports, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PCT-4-800 | QED Part # 423506
$411.08 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 800 kcmil - 250 kcmil, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Clear, 1 poles,

Technical Information

Amperage
CU:555
Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Size
800-250 kcmil
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
4
Number of Ports
4
Standard
CSA,E2186,UL
Stud Size
1/2 in
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
PCT, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearTap®

General Product Info

12-Digit UPC
783669700749
Color
Clear
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366970074
Weight
1.895 lb

Dimensions

Height
3.389 Inch
Length
6.918 Inch
Width
3.428 in
